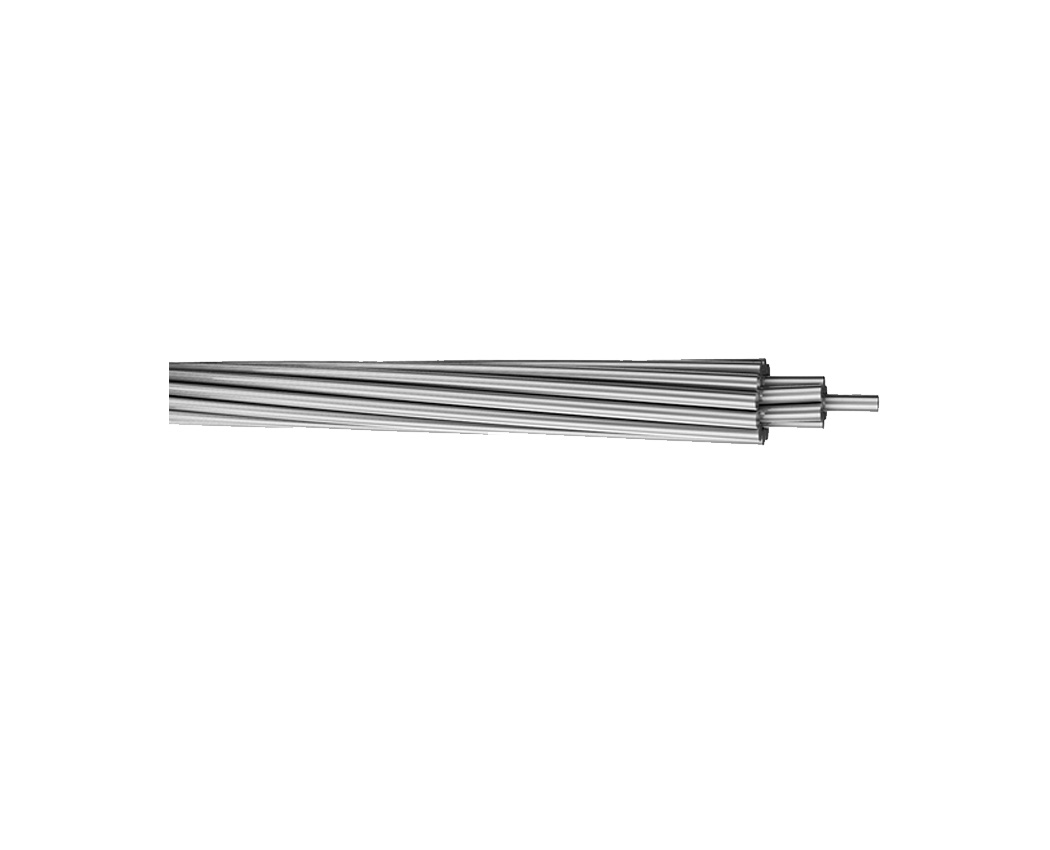

AAAC

Fully Alloyed Aluminum Conductor. Class 2 Type Aluminum Conductor

Nominal Section	Number of Wires x Diameter (N2 x Ø mm)	Conductor Diameter (mm)	Net Weight (kg/km)	Conductor Resistance at 20° (ohm/km)	Max. Breaking Load kN
Nominal Section	Number of Wires x Diameter (N2 x Ø mm)	Conductor Diameter (mm)	Net Weight (kg/km)	Conductor Resistance at 20° (ohm/km)	Max. Breaking Load kN

16	7×1.70	5.10	43.7	1.91	4.71
25	7×2.10	6.30	66.6	1.20	7.36
35	7×2.50	9.00	94.3	0.87	10.30
50	7×3.00	10.50	135.7	0.641	14.72
70	19×2.10	10.50	180.7	0.443	20.60
95	19×2.50	12.50	256.6	0.320	27.96
120	19×2.80	14.00	321.8	0.253	35.32
150	37×2.25	15.80	407.0	0.206	44.15
185	37×2.50	17.50	502.2	0.164	54.45
240	61×2.25	20.30	674.2	0.125	70.63
300	61×2.50	22.50	832.0	0.100	88.29
