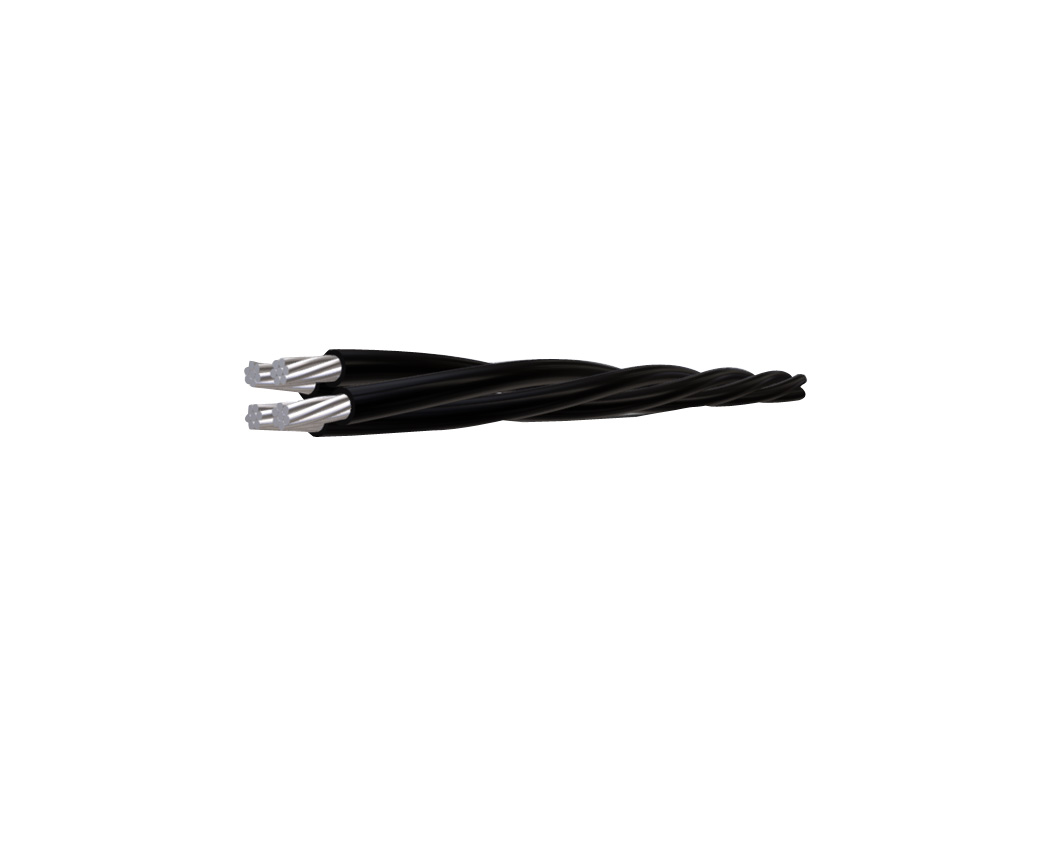

ABC NFA2X

Multi-stranded conductor aluminum
PE or XLPE insulated
Aluminum alloy suspension wire

Max. Working Temperature: 90 °C
Minimum Bending Radius: 15xD
Short Circuit Temperature: 250 °C
Rated Voltage: 0.6/1 kV Test Voltage: 4 kV

Nominal Section (mm²)	Insulated Conductor Diameter	Suspension Rope Diameter	Conductor DC Resistance at 20˚C (ohm/km)	Carrier Rope Resistance DC Resistance at 20˚C (ohm/km)	Net Weight (kg/km) Approx.	Current Carrying Capacity Conductor
1x16	4.6	---	1.91	---	64	60
1x25	5.9	---	1.2	---	93	112
1x35	6.9	---	0.868	---	122	138
1x50	8.1	---	0.641	---	164	168
1x70	9.7	---	0.443	---	225	213
1x95	11.4	---	0.32	---	314	258
1x120	12.8	---	0.253	---	385	300
1x150	14.1	---	0.206	---	462	344
2x16	4.6	---	1.91	---	128	60
2x25	5.9	---	1.2	---	187	112
2x35	6.9	---	0.868	---	240	129
2x50	8.1	---	0.641	---	328	168
2x70	9.7	---	0.443	---	450	213
3x16	4.6	---	1.91	---	192	60
3x25	5.9	---	1.2	---	280	112
3x35	6.9	---	0.868	---	365	138
3x50	8.1	---	0.641	---	492	168
3x70	9.7	---	0.443	---	675	213
3x95	11.4	---	0.32	---	943	258
3x120	12.8	---	0.253	---	1156	300
3x150	14.1	---	0.206	---	1385	344
4x16	4.6	---	1.91	---	256	60
4x25	5.9	---	1.2	---	374	112
4x35	6.9	---	0.868	---	487	138
4x50	8.1	---	0.641	---	656	168
4x70	9.7	---	0.443	---	900	213
4x95	11.4	---	0.32	---	1257	258
4x120	12.8	---	0.253	---	1542	300
4x150	14.1	---	0.206	---	1847	344
3x25+16	5.9	5	1.2	2.21	351	112
3x35+16	6.9	5	0.868	2.21	436	138
3x50+25	8.1	5.9	0.641	1.38	590	168
3x70+35	9.7	6.9	0.443	0.868	802	213
3x95+50	11.4	8.2	0.32	0.72	1114	258
3x120+70	12.8	9.8	0.253	0.493	1392	300
3x150+70	14.1	9.8	0.206	0.493	1621	344
3x95+70	11.5	9.8	0.32	0.493	1200	258
