Cu/XLPE/CTS/LSZH/AWA/LSZH

These are cables with low dielectric losses used in energy networks with sudden load changes. Laid in residential or industrial areas, underground or in ducts.

Technical Data
Max. operating temperature	90 °C
Max. short circuit temperature	250 °C (max. 5 sec.)
Rated voltage	20.3/35 kV \| 20.8/36 kV
Min. bending radius	15 x D
D	Cable outer diameter

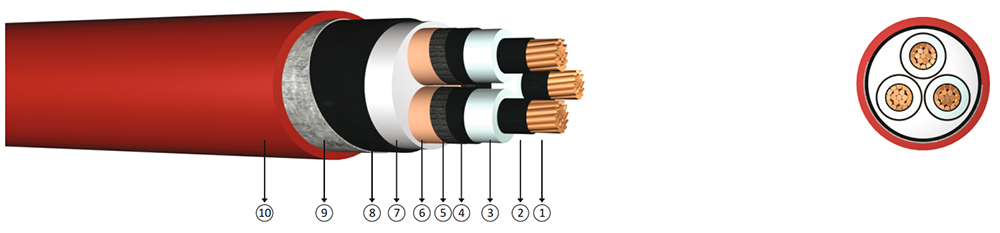

Construction
1- Stranded copper conductors
2- Inner semi conductive layer
3- XLPE insulation
4- Outer semi conductive layer
5- Semi conductive tape
6- Copper screen
7- Filler
8- Inner sheath
9- Galvanized double steel tape
10- PVC outer jacket

DIMENSION AND WEIGHTS				ELECTRICAL PROPERTIES
Nominal Cross Section	Overall Diameter (approx)	Net Weight (approx)	Delivery Length	DC Conductor Resistance at 20 ºC Max	Operation Inductance (approx)	Operation Capacitance (approx)	Current Carrying Capacity (A)
mm ²	mm	kg/km	m	ohm/km	mH/km	µF/km	In ground at 20 ºC	In air at 30 ºC
3x35/16	78,0	8900	500	0,524	0,457	0,114	-	-
3x50/16	82,0	10500	500	0,387	0,434	0,124	214	210
3x70/16	87,0	12000	500	0,268	0,410	0,137	261	262
3x95/16	90,0	13500	250	0,193	0,389	0,150	313	319
3x120/16	93,0	15000	250	0,153	0,372	0,163	356	364
3x150/25	97,0	16500	250	0,124	0,360	0,174	400	418
3x185/25	101,0	18500	250	0,0991	0,348	0,188	441	478
3x240/25	105,5	21000	250	0,0754	0,331	0,209	510	562
3x300/25	110,5	24000	200	0,0601	0,321	0,226	-	-
3x400/35	118,5	28000	200	0,0470	0,307	0,251	-	-
