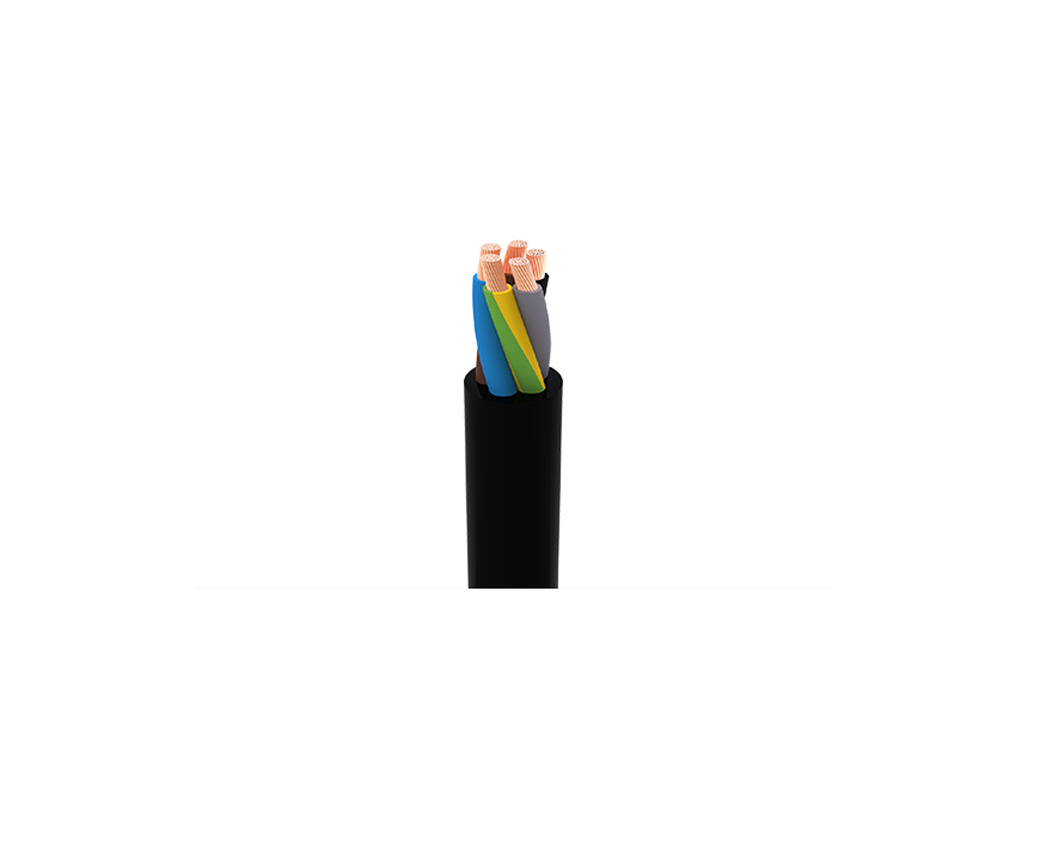

H07RN-F

These rubber sheathed flexible cables are used as power and control cables in open-built plants, industry works, electrical tools and mobile equipments under heavy conditions and medium mechanical stress. Due to it’s construction it can be used indoor, outdoor, wet, oily, damp places and explosion hazard areas. Üntel Kablo certifies the usage of this cable permanently submerged in water up to 10 bar (100 mts) and IPX8 tested by TUV

CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EI4 type cross-linked elastomeric compound, EPR (EN 50363-1)
INNER SHEATH: EM2 or EM3 type cross-linked elastomeric compound (EN 50363-2-1) If outer sheath thickness is greater than 2,4 mm
OUTER SHEATH: EM2 type cross-linked elastomeric compound (EN 50363-2-1)
COLOR: Black (other colors available on request)

RATED VOLTAGE: 450/750 V (U₀/U)
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +60°C
IN FIXED USE : -40°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 200°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -25°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.13 , IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1

Cross Section (mm²)	Nominal Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius (free movement) (mm)	Max. Resistance of Conductors at 20°C (ohm / km)
1×1,5	6,00	50	24	13,30
1×2,5	6,40	63	26	7,98
1×4	7,30	85	29	4,95
1×6	8,10	111	32	3,30
1×10	10,20	179	41	1,91
1×16	11,00	238	44	1,21
1×25	13,80	365	69	0,78
1×35	15,30	475	77	0,554
1×50	17,80	657	89	0,386
1×70	19,40	864	97	0,272
1×95	22,10	1118	133	0,206
1×120	24,40	1404	146	0,161
1×150	16,60	1698	83	0,129
1×185	29,70	2100	178	0,106
1×240	32,60	2396	196	0,0801
1×300	35,60	3256	214	0,0641
1×400	40,90	4377	245	0,0486
1×500	45,60	5632	274	0,0384
1×630	49,30	6975	296	0,0287
2×1	8,40	94	34	19,50
2×1,5	9,30	117	37	13,30
2×2,5	10,60	160	42	7,98
2×4	12,20	221	61	4,95
2×6	13,60	288	68	3,30
2×10	19,20	555	96	1,91
2×16	21,00	717	126	1,21
2×25	26,70	1124	160	0,78
2×35	29,40	1421	176	0,554
2×50	34,40	1968	206	0,386
2×70	38,30	2564	230	0,272
2×95	43,70	3330	262	0,206
3×1	9,10	114	36	19,50
3×1,5	9,90	140	40	13,30
3×2,5	11,40	196	46	7,98
3×4	13,10	273	66	4,95
3×6	14,60	358	73	3,30
3×10	20,60	682	124	1,91
3×16	22,50	892	135	1,21
3×25	28,60	1390	172	0,78
3×35	31,70	1789	190	0,554
3×50	37,00	2474	222	0,386
3×70	40,90	3231	245	0,272
3×95	46,90	4220	281	0,206
3×120	51,60	5248	310	0,161
3×150	56,20	6319	337	0,129
3×185	62,30	7806	374	0,106
3×240	69,50	9963	417	0,0801
3×300	76,70	11894	460	0,0641
3×2,5+1,5	12,30	229	62	7,98
3×4+2,5	14,00	316	70	4,95
3×6+4	15,80	425	79	3,30
3×10+6	22,40	810	134	1,91
3×16+10	24,60	1070	148	1,21
3×25+16	31,40	1687	188	0,78
3×35+16	34,60	2114	208	0,554
3×50+25	40,60	2945	244	0,386
3×70+35	44,50	3820	267	0,272
3×95+50	51,00	5008	306	0,206
3×120+70	56,00	6267	336	0,161
3×150+70	60,90	7432	365	0,129
3×185+95	68,40	9296	410	0,106
3×240+120	76,50	11881	459	0,0801
3×300+150	84,40	14580	506	0,0641
4×1	10,10	143	40	19,50
4×1,5	11,00	175	44	13,30
4×2,5	12,60	244	63	7,98
4×4	14,50	342	73	4,95
4×6	16,30	456	82	3,30
4×10	22,60	845	136	1,91
4×16	24,70	1114	148	1,21
4×25	31,80	1760	191	0,78
4×35	35,20	2265	211	0,554
4×50	41,10	3136	247	0,386
4×70	45,00	4098	270	0,272
4×95	52,00	5393	312	0,206
4×120	56,80	6657	341	0,161
4×150	62,20	8067	373	0,129
4×185	69,70	10030	418	0,106
4×240	77,60	12786	466	0,0801
4×300	85,80	15799	515	0,0641
5×1	11,10	170	44	19,50
5×1,5	12,10	208	61	13,30
5×2,5	13,80	290	69	7,98
5×4	16,10	415	81	4,95
5×6	18,10	554	91	3,30
5×10	24,90	1033	149	1,91
5×16	27,40	1377	164	1,21
5×25	35,40	2183	212	0,78
5×35	38,90	2788	233	0,554
5×50	45,80	3902	275	0,386
5×70	50,20	5113	301	0,272
5×95	57,80	6693	347	0,206
6×1,5	14,40	289	72	13,30
6×2,5	16,20	1123	81	7,98
6×4	18,70	551	94	4,95
7×1,5	15,40	337	77	13,30
7×2,5	17,50	463	88	7,98
7×4	20,70	670	124	4,95
12×1,5	18,70	486	94	13,30
12×2,5	21,20	669	127	7,98
12×4	24,90	969	149	4,95
18×1,5	22,00	690	132	13,30
18×2,5	25,00	964	150	7,98
18×4	29,50	1407	177	4,95
24×1,5	25,70	894	154	13,30
24×2,5	29,40	1263	176	7,98
36×1,5	29,40	1245	176	13,30
36×2,5	33,80	1781	203	7,98
