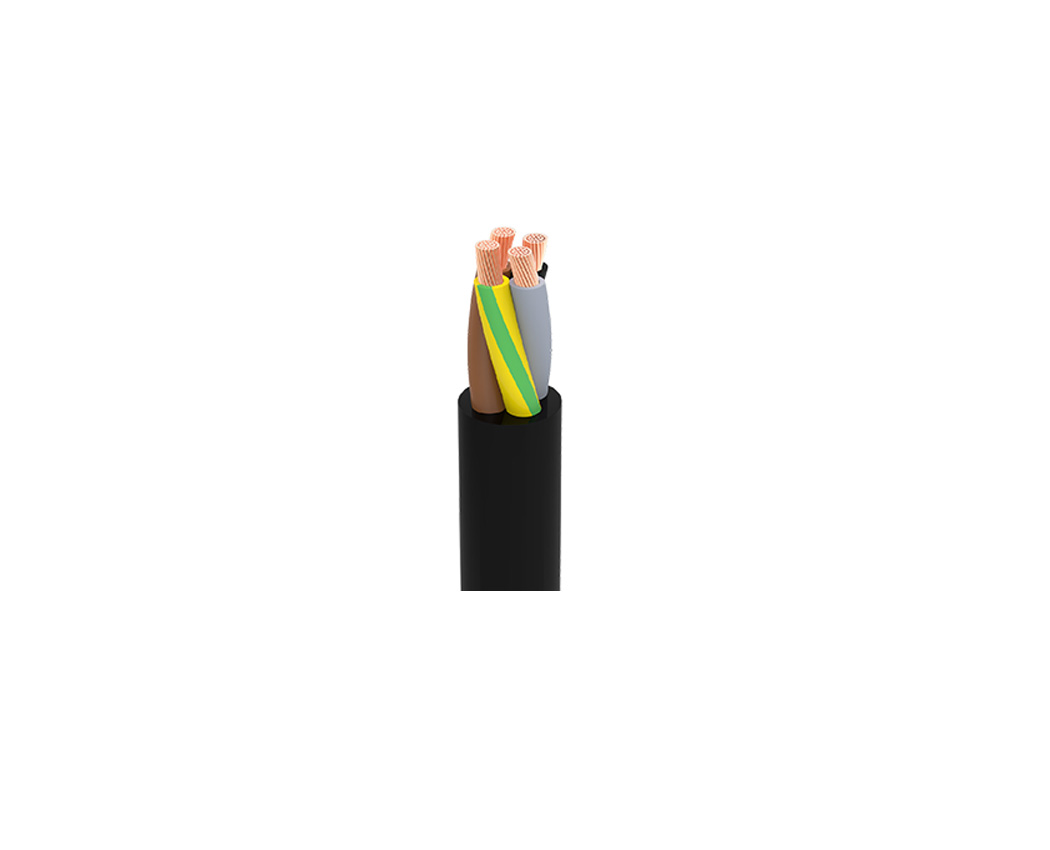

H07RN8-F
These rubber sheathed flexible cables are used as power and control cables in submersible pumps, agricultural and industrial workshops. This cable comply with AD8 classification and they are suitable for permanently submersion in water, 200 mt depth (20 bars) with maximum water temperature up to +40ºC. Due to it’s construction it can be used indoor, outdoor, wet, oily, damp places and explosion hazard areas.
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EI4 type cross-linked elastomeric compound, EPR (EN 50363-1)
INNER SHEATH: EM2 or EM3 type cross-linked elastomeric compound (EN 50363-2-1) If outer sheath thickness is greater than 2,4 mm
OUTER SHEATH: EM2 type cross-linked elastomeric compound (EN 50363-2-1)
COLOR: Black (other colors available on request)
RATED VOLTAGE: 450/750 V (U0/U)
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +60°C
IN FIXED USE: -40°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 200°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -25°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.13 , IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1
| Cross Section (mm²) |
Nominal Overall Diameter (mm) |
Approximate Weight
(kg / km) |
Min.Bending Radius
(free movement) (mm) |
Max. Resistance of Conductors
at 20°C (ohm / km) |
| 1×1,5 |
6,00 |
50 |
24 |
13,30 |
| 1×2,5 |
6,40 |
63 |
26 |
7,98 |
| 1×4 |
7,30 |
85 |
29 |
4,95 |
| 1×6 |
8,10 |
111 |
32 |
3,30 |
| 1×10 |
10,20 |
179 |
41 |
1,91 |
| 1×16 |
11,00 |
238 |
44 |
1,21 |
| 1×25 |
13,80 |
365 |
69 |
0,78 |
| 1×35 |
15,30 |
475 |
77 |
0,554 |
| 1×50 |
17,80 |
657 |
89 |
0,386 |
| 1×70 |
19,40 |
864 |
97 |
0,272 |
| 1×95 |
22,10 |
1118 |
133 |
0,206 |
| 1×120 |
24,40 |
1404 |
146 |
0,161 |
| 1×150 |
16,60 |
1698 |
83 |
0,129 |
| 1×185 |
29,70 |
2100 |
178 |
0,106 |
| 1×240 |
32,60 |
2396 |
196 |
0,0801 |
| 1×300 |
35,60 |
3256 |
214 |
0,0641 |
| 1×400 |
40,90 |
4377 |
245 |
0,0486 |
| 1×500 |
45,60 |
5632 |
274 |
0,0384 |
| 1×630 |
49,30 |
6975 |
296 |
0,0287 |
| 2×1 |
8,40 |
94 |
34 |
19,50 |
| 2×1,5 |
9,30 |
117 |
37 |
13,30 |
| 2×2,5 |
10,60 |
160 |
42 |
7,98 |
| 2×4 |
12,20 |
221 |
61 |
4,95 |
| 2×6 |
13,60 |
288 |
68 |
3,30 |
| 2×10 |
19,20 |
555 |
96 |
1,91 |
| 2×16 |
21,00 |
717 |
126 |
1,21 |
| 2×25 |
26,70 |
1124 |
160 |
0,78 |
| 2×35 |
29,40 |
1421 |
176 |
0,554 |
| 2×50 |
34,40 |
1968 |
206 |
0,386 |
| 2×70 |
38,30 |
2564 |
230 |
0,272 |
| 2×95 |
43,70 |
3330 |
262 |
0,206 |
| 3×1 |
9,10 |
114 |
36 |
19,50 |
| 3×1,5 |
9,90 |
140 |
40 |
13,30 |
| 3×2,5 |
11,40 |
196 |
46 |
7,98 |
| 3×4 |
13,10 |
273 |
66 |
4,95 |
| 3×6 |
14,60 |
358 |
73 |
3,30 |
| 3×10 |
20,60 |
682 |
124 |
1,91 |
| 3×16 |
22,50 |
892 |
135 |
1,21 |
| 3×25 |
28,60 |
1390 |
172 |
0,78 |
| 3×35 |
31,70 |
1789 |
190 |
0,554 |
| 3×50 |
37,00 |
2474 |
222 |
0,386 |
| 3×70 |
40,90 |
3231 |
245 |
0,272 |
| 3×95 |
46,90 |
4220 |
281 |
0,206 |
| 3×120 |
51,60 |
5248 |
310 |
0,161 |
| 3×150 |
56,20 |
6319 |
337 |
0,129 |
| 3×185 |
62,30 |
7806 |
374 |
0,106 |
| 3×240 |
69,50 |
9963 |
417 |
0,0801 |
| 3×300 |
76,70 |
11894 |
460 |
0,0641 |
| 3×2,5+1,5 |
12,30 |
229 |
62 |
7,98 |
| 3×4+2,5 |
14,00 |
316 |
70 |
4,95 |
| 3×6+4 |
15,80 |
425 |
79 |
3,30 |
| 3×10+6 |
22,40 |
810 |
134 |
1,91 |
| 3×16+10 |
24,60 |
1070 |
148 |
1,21 |
| 3×25+16 |
31,40 |
1687 |
188 |
0,78 |
| 3×35+16 |
34,60 |
2114 |
208 |
0,554 |
| 3×50+25 |
40,60 |
2945 |
244 |
0,386 |
| 3×70+35 |
44,50 |
3820 |
267 |
0,272 |
| 3×95+50 |
51,00 |
5008 |
306 |
0,206 |
| 3×120+70 |
56,00 |
6267 |
336 |
0,161 |
| 3×150+70 |
60,90 |
7432 |
365 |
0,129 |
| 3×185+95 |
68,40 |
9296 |
410 |
0,106 |
| 3×240+120 |
76,50 |
11881 |
459 |
0,0801 |
| 3×300+150 |
84,40 |
14580 |
506 |
0,0641 |
| 4×1 |
10,10 |
143 |
40 |
19,50 |
| 4×1,5 |
11,00 |
175 |
44 |
13,30 |
| 4×2,5 |
12,60 |
244 |
63 |
7,98 |
| 4×4 |
14,50 |
342 |
73 |
4,95 |
| 4×6 |
16,30 |
456 |
82 |
3,30 |
| 4×10 |
22,60 |
845 |
136 |
1,91 |
| 4×16 |
24,70 |
1114 |
148 |
1,21 |
| 4×25 |
31,80 |
1760 |
191 |
0,78 |
| 4×35 |
35,20 |
2265 |
211 |
0,554 |
| 4×50 |
41,10 |
3136 |
247 |
0,386 |
| 4×70 |
45,00 |
4098 |
270 |
0,272 |
| 4×95 |
52,00 |
5393 |
312 |
0,206 |
| 4×120 |
56,80 |
6657 |
341 |
0,161 |
| 4×150 |
62,20 |
8067 |
373 |
0,129 |
| 4×185 |
69,70 |
10030 |
418 |
0,106 |
| 4×240 |
77,60 |
12786 |
466 |
0,0801 |
| 4×300 |
85,80 |
15799 |
515 |
0,0641 |
| 5×1 |
11,10 |
170 |
44 |
19,50 |
| 5×1,5 |
12,10 |
208 |
61 |
13,30 |
| 5×2,5 |
13,80 |
290 |
69 |
7,98 |
| 5×4 |
16,10 |
415 |
81 |
4,95 |
| 5×6 |
18,10 |
554 |
91 |
3,30 |
| 5×10 |
24,9 |
1033 |
149 |
1,91 |
| 5×16 |
27,4 |
1377 |
164 |
1,21 |
| 5×25 |
35,4 |
2183 |
212 |
0,78 |
| 5×35 |
38,9 |
2788 |
233 |
0,554 |
| 5×50 |
45,8 |
3902 |
275 |
0,386 |
| 5×70 |
50,2 |
5113 |
301 |
0,272 |
| 5×95 |
57,8 |
6693 |
347 |
0,206 |
| 6×1,5 |
14,4 |
289 |
72 |
13,30 |
| 6×2,5 |
16,2 |
1123 |
81 |
7,98 |
| 6×4 |
18,7 |
551 |
94 |
4,95 |
| 7×1,5 |
15,4 |
337 |
77 |
13,30 |
| 7×2,5 |
17,5 |
463 |
88 |
7,98 |
| 7×4 |
20,7 |
670 |
124 |
4,95 |
| 12×1,5 |
18,7 |
486 |
94 |
13,30 |
| 12×2,5 |
21,2 |
669 |
127 |
7,98 |
| 12×4 |
24,9 |
969 |
149 |
4,95 |
| 18×1,5 |
22 |
690 |
132 |
13,30 |
| 18×2,5 |
25 |
964 |
150 |
7,98 |
| 18×4 |
29,5 |
1407 |
177 |
4,95 |
| 24×1,5 |
25,7 |
894 |
154 |
13,30 |
| 24×2,5 |
29,4 |
1263 |
176 |
7,98 |
| 36×1,5 |
29,4 |
1245 |
176 |
13,30 |
| 36×2,5 |
33,8 |
1781 |
203 |
7,98 |
