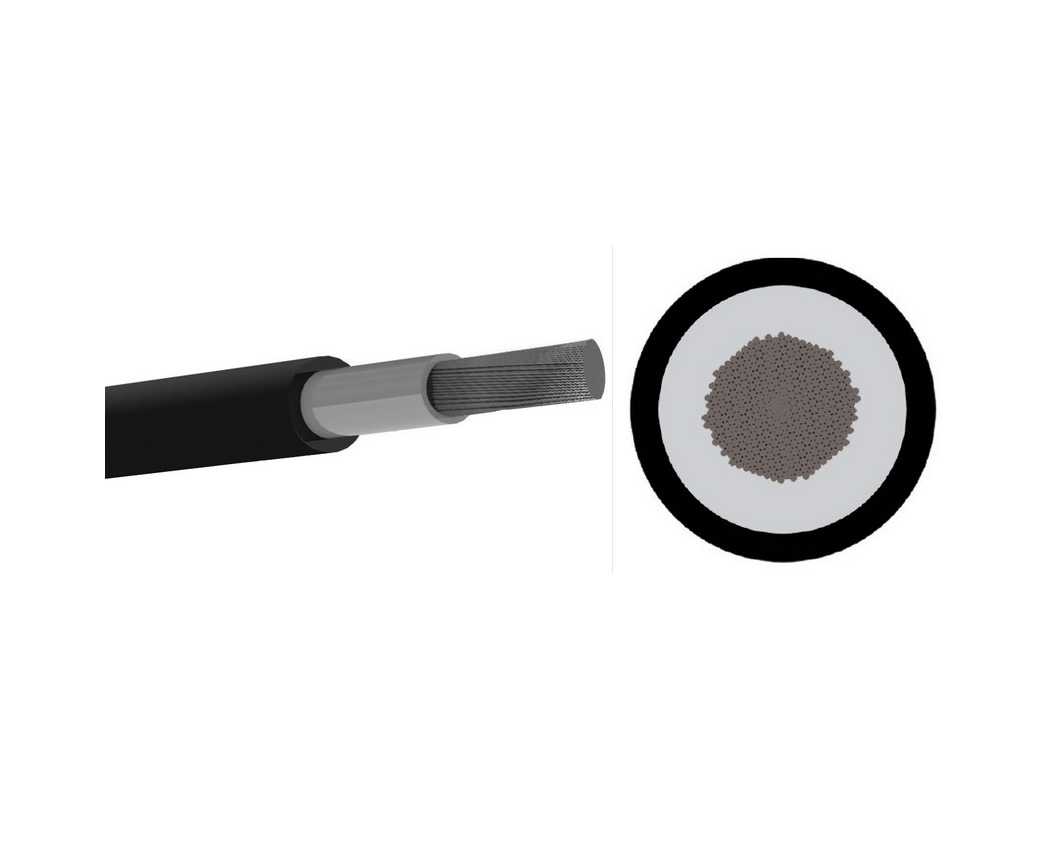

H1Z2Z2-K
VK-PV are used in solar power and solar energy production applications, solar cells and solar panel systems. VK-PV is suitable for usage in PV systems manufactured in compliance with HD 60364-7-712.
Recommended service life is 25 years
Desing Standard: EN 50618
Permissible Operating Tempature: 90°C
Operating Voltage (Rated Voltage): 1.0/1KV Ac
Operating Voltage(Max. Voltage DC): 1.5/1.5Kv
Max. Short Circuit Temapature: 250°C
Colours: Black/Red
| Technical Features |
| Cross Section |
Max.Outer Diameter |
Current Carrying Capacity |
Max. DC Resistance |
Nom. Weigh |
Delivery Length |
| mm² |
mm |
A |
Ohm/km (20°C) |
kg/km |
mt |
| 1,50 |
5,40 |
30 |
13,70 |
38,20 |
1000 |
| 2,50 |
5,90 |
41 |
8,21 |
50,80 |
1000 |
| 4,00 |
6,60 |
55 |
5,09 |
67,40 |
1000 |
| 6,00 |
7,40 |
70 |
3,39 |
90,20 |
1000 |
| 10,00 |
8,80 |
98 |
1,95 |
135,20 |
1000 |
| 16,00 |
10,10 |
132 |
1,24 |
205,10 |
1000 |
| 25,00 |
12,50 |
176 |
0,795 |
309,00 |
1000 |
| 35,00 |
14,00 |
218 |
0,565 |
416,40 |
1000 |
| 50,00 |
16,30 |
276 |
0,393 |
571,40 |
1000 |
| 70,00 |
18,70 |
347 |
0,277 |
810,60 |
1000 |
| 95,00 |
20,80 |
416 |
0,21 |
1001,70 |
1000 |
| 120,00 |
22,80 |
488 |
0,164 |
1274,90 |
1000 |
| 150,00 |
25,50 |
566 |
0,132 |
1674,10 |
1000 |
| 185,00 |
28,50 |
644 |
0,108 |
1987,10 |
1000 |
| 240,00 |
32,10 |
775 |
0,0817 |
2699,30 |
1000 |
