N2XSH, YXC7Z1-R

Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plant, data processing centers, business centers where there is a risk of fire.

Technical Data
Max. operating temperature	90 °C
Max. short circuit temperature	250 °C (max. 5 sec.)
Rated voltage	20.3/35 kV \| 20.8/36 kV
Min. bending radius	15 x D
D	Cable outer diameter

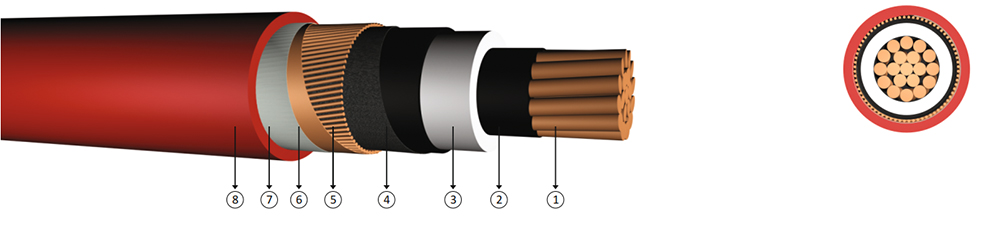

Construction
1- Stranded copper conductors
2- Inner semi conductive layer
3- XLPE insulation
4- Outer semi conductive layer
5- Semi conductive tape
6- Copper screen
7- Polyester tape
8- HFFR outer jacket

DIMENSION AND WEIGHTS			ELECTRICAL PROPERTIES
Nominal Cross Section	Overall Diameter (approx)	Net Weight (approx)	Delivery Length	DC Conductor Resistanceat 20 ºC Max	DC Conductor Resistance at 90 ºC Max	Operation Inductance		Operational Capacitance	Current Carrying Capacity (A)
mm ²	mm	kg/km	m	ohm/km	ohm/km	*** mH/km	^* mH/km	µF/km	In ground at 20 ºC		In air at 30 ºC
mm ²	mm	kg/km	m	ohm/km	ohm/km	*** mH/km	^* mH/km	µF/km	*******	*^**	*******	*^**
1x35/16	34,5	1300	1000	0,524	0,6707	0,685	0,464	0,115	214	192	233	202
1x50/16	36,0	1550	1000	0,387	0,4954	0,659	0,444	0,125	251	226	279	241
1x70/16	37,5	1800	1000	0,268	0,3430	0,628	0,420	0,140	306	276	348	299
1x95/16	39,5	2100	1000	0,193	0,2470	0,604	0,402	0,153	363	329	421	362
1x120/16	41,5	2400	1000	0,153	0,1958	0,585	0,388	0,165	410	373	483	416
1x150/25	43,0	2850	1000	0,124	0,1587	0,567	0,376	0,178	449	415	540	469
1x185/25	44,5	3200	1000	0,0991	0,1268	0,551	0,365	0,191	503	468	615	536
1x240/25	47,5	3800	1000	0,0754	0,0965	0,531	0,351	0,209	576	541	718	630
1x300/25	49,5	4500	1000	0,0601	0,0769	0,514	0,341	0,226	641	608	812	717
1x400/35	53,0	5650	500	0,0470	0,0602	0,493	0,328	0,252	697	684	904	823
1x500/35	56,0	6700	500	0,0366	0,0468	0,477	0,318	0,274	768	762	1011	929
1x630/35	60,0	8000	500	0,0283	0,0362	0,460	0,308	0,300	858	847	1128	1043
