NA2XSH, YAXC7Z1-R

Used in energy networks in refineries, mines, hotels, schools, tunnels, high constructions, hospitals, power plant, data processing centers, business centers where there is a risk of fire.

Technical Data
Max. operating temperature	90 °C
Max. short circuit temperature	250 °C (max. 5 sec.)
Rated voltage	20.3/35 kV \| 20.8/36 kV
Min. bending radius	15 x D
D	Cable outer diameter

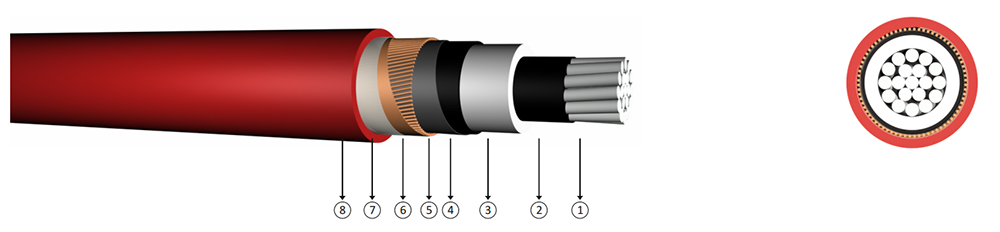

Construction
1- Stranded aluminium conductor
2- Inner semi conductive layer
3- XLPE insulation
4- Outer semi conductive layer
5- Semi conductive tape
6- Copper screen
7- Polyester tape
8- LSZH outer jacket

DIMENSION AND WEIGHTS			ELECTRICAL PROPERTIES
Nominal Cross Section	Overall Diameter (approx)	Net Weight (approx)	Delivery Length	DC Conductor Resistanceat 20 ºC Max	DC Conductor Resistance at 90 ºC Max	Operation Inductance		Operation Capacitance	Current Carrying Capacity (A)
mm ²	mm	kg/km	m	ohm/km	ohm/km	*** mH/km	^* mH/km	µF/km	In ground at 20 ºC		In air at 30 ºC
mm ²	mm	kg/km	m	ohm/km	ohm/km	*** mH/km	^* mH/km	µF/km	*******	*^**	*******	*^**
1x35/16	34,5	1100	1000	0,868	1,1110	0,657	0,464	0,115	-	-	-	-
1x50/16	36,0	1200	1000	0,641	0,8205	0,632	0,444	0,125	196	175	217	187
1x70/16	37,5	1350	1000	0,443	0,5670	0,601	0,420	0,140	238	214	270	232
1x95/16	39,5	1500	1000	0,320	0,4096	0,577	0,402	0,153	284	256	328	281
1x120/16	41,5	1650	1000	0,253	0,3238	0,558	0,388	0,165	322	290	378	323
1x150/25	43,0	1900	1000	0,206	0,2637	0,541	0,376	0,178	355	324	425	365
1x185/25	44,5	2050	1000	0,164	0,2099	0,525	0,365	0,191	400	366	485	418
1x240/25	47,5	2350	1000	0,125	0,1600	0,506	0,351	0,209	461	426	572	494
1x300/25	49,5	2600	1000	0,100	0,1280	0,490	0,341	0,226	516	479	649	564
1x400/35	53,0	3150	1000	0,0778	0,1009	0,471	0,328	0,252	572	545	737	654
1x500/35	56,0	3600	1000	0,0605	0,0774	0,456	0,318	0,274	638	614	835	747
1x630/35	60,0	4150	1000	0,0469	0,0600	0,440	0,308	0,300	728	690	950	851
