Disconnecting Switches & Double Throw Disconnecting Switches

L.V. Disconnecting Switches and Double Throw Disconnecting Switches are produced AC20 class and ISO 9001 Quality Assuranc from electro cadmium plated sheet iron to be long lasting. Operating bodies and handles are made from special strong plastics for isolation. Fixed and moving terminals are made from electrolytic copper and silver plated for minimizing of transition resistance. In case of to prevent unwanted switched on/off, control panels can be removable.

L.V. Disconnecting Switches and Double Throw Disconnecting Switches are designed for off load operations. Using them on load operations is dangerous. L.V. disconnecting switches and double throw disconnecting switches are suitable for electric companies’s

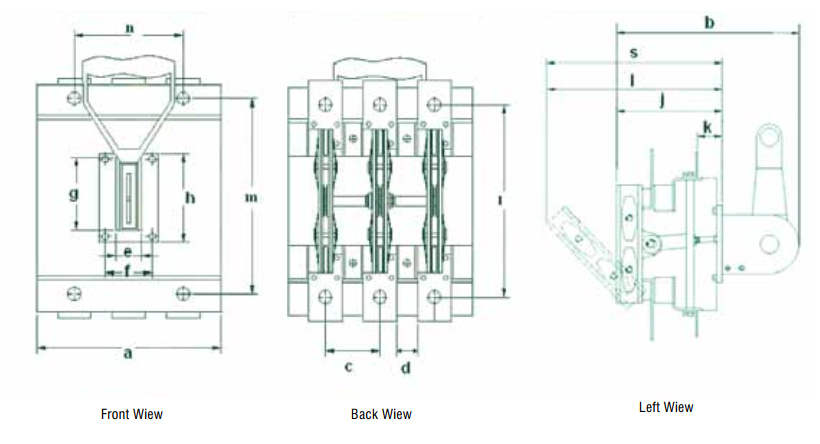

TYPE	Rated Operating Voltage	Rated Insulating Voltage	Rated Operating Current	a	b	c	d	e	f	g	h	i	j	k	l	m	n	Inverter a - s		Connecting Bus	Connecting Bolt	Weight (kg)
OKS 125	400 V	600 V	125 A	130	197	43	18	30	50	85	94	145	88	-	163	-	-	154	185	25x1,5	M8x20	1,6
OKS 160	400 V	600 V	160 A	130	197	43	18	30	50	85	94	145	88	-	163	-	-	154	185	25x1,5	M8x20	1,7
OKS 200	400 V	600 V	200 A	130	197	43	18	30	50	85	94	145	88	-	163	-	-	154	185	25x2,5	M8x20	1,8
OKS 250	400 V	600 V	250 A	130	197	34	18	30	50	85	94	145	88	-	163	-	-	154	185	25x2,5	M8x20	1,8
OKS 400	400 V	600 V	400 A	220	250	70	30	30	50	85	94	250	140	38	230	230	143	220	295	40x2,5	M10x25	5,3
OKS 630	400 V	600 V	630 A	220	250	70	30	30	50	85	94	250	140	38	230	230	143	220	295	40x5	M10x25	6,2
OKS 1000	400 V	600 V	1000 A	400	331	120	40	30	50	85	94	370	222	67	325	312	240	450	430	80x5	M10x30	22,7
OKS 1500	400 V	600 V	1500 A	4000	349	120	40	30	50	85	94	375	237	67	350	312	240	450	440	80x10	M10x35	26,5
OKS 2000	400 V	600 V	2000 A	570	349	200	100	30	50	85	94	385	234	67	480	380	400	620	480	100x10	M10x35	41,2
OKS 2500	400 V	600 V	2500 A	570	349	200	80	30	50	85	94	435	242	67	535	455	400	620	500	120x10	M10x35	50,5
