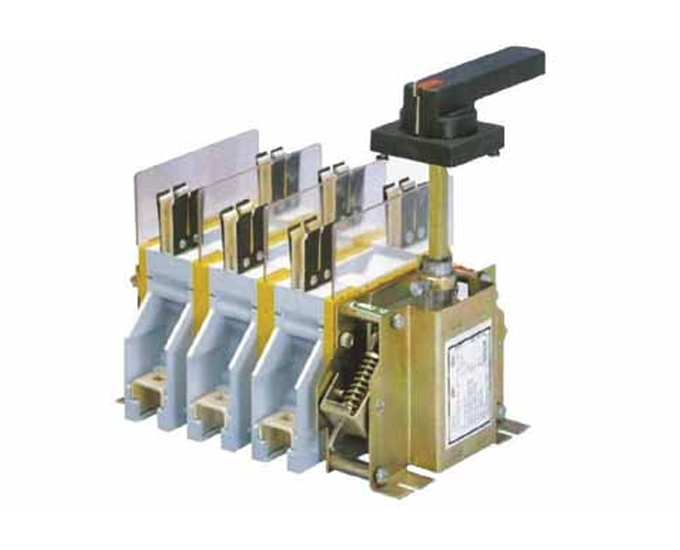

Fused Load Breaking Switches
L.V. fused disconnecting switches are produced according to TS standards, IP 31 protection category and AC22 class. Products are manufactured by using high quality and from durable materials. Our L.V. fused disconnecting switches are particularly used at light distribution panels safely. As there are 4 different components for switching on/off function, chancing of fuses can be done safely. If a breakdown occurs in the panel that connected to the switch, it is possible to create safety working area by using the lock mechanism on the switch handle. Our switches certified by ISO-9001:2008 Quality Assurance System and tested in CESI laboratories.
| TYPE |
Rated Operating Voltage |
Rated Insulating Voltage |
Rated Operating Current |
Main Thermic Current |
Rated Closing Capacity |
Rated Cutting Capacity |
Rated Short Time Withstand Current |
Rated Short Circuit Closing Capacity |
Fuse Type |
Mechanical Withstand |

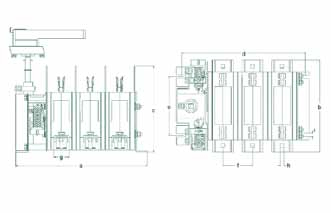

a |
b |
c |
d |
e |
f |
g |
h |
i |
Connecting Bolt |
Weight (kg) |
| SYKS 160 |
400V |
600V |
160A |
160A |
500A |
500A |
50kA |
85kA |
NH 00 |
5000 |
224 |
196 |
180 |
207 |
119 |
45 |
32 |
8,5 |
7 |
5,5 |
M8x20 |
| SYKS 250 |
400V |
600V |
250A |
250A |
750A |
750A |
50kA |
85kA |
NH 1 |
5000 |
270 |
196 |
180 |
253 |
119 |
60 |
32 |
8,5 |
7 |
6,3 |
M8x20 |
| SYKS 400 |
400V |
600V |
400A |
400A |
1200A |
1200A |
50kA |
85kA |
NH 2 |
5000 |
270 |
196 |
180 |
253 |
119 |
60 |
32 |
8,5 |
7 |
6,9 |
M8x20 |
