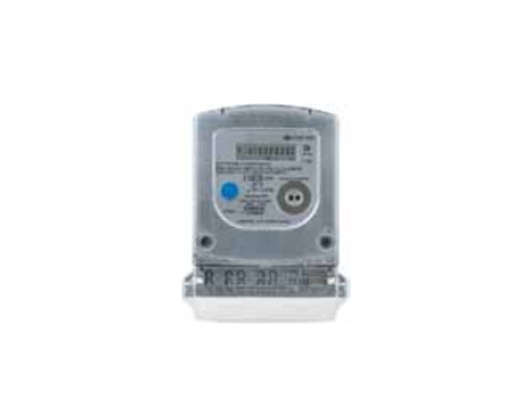

Active Reactive Meters

TYPE	L4	L5	L6
Connection Type	3 Phase and 4 wires
Accuracy	Active Clas: C Reactive Class: 2
Reference Voltage	3x220/380V	3x220/380V	3x57,7/100 V
Operating Voltage	110V-300V	110V-300V	40V-65V
Reference Current	10 A	10 A	10 A
Maximum Current	120 A	20 A	20 A
Minimum Current	0,5 A	0,05 A	0,05 A
Starting Current	40 mA	10 mA	10 mA
Frequency	50 Hz±%2	50 Hz±%2	50 Hz±%2
Meter Constant	1000 imp/kWh (Active) - 1000 imp/kVArh (Reactive)
Connection Type	Direct	Current Transformator	Current and Voltage Transformator
Meter Constant	IP 54
Relative Humidity	0,95
Temperature Range	-40 °C /+70 °C
LCD Screen	6 integers 3 decimal
Communication	RS485/RS232

TYPE	L2	L20	L21	L22	L3
Connection Type	3 Phase and 4 wires
Accuracy	Active Class: B				Active:%1
Reference Voltage	3x220/380V
Operating Voltage	110V-300V
Reference Current	10 A	5 A	5 A	5 A	5 A
Maximum Current	85 A	100 A	100 A	100 A	20 A
Minimum Current	0,5 A	0,25 A	0,25 A	0,05 A	0,05 A
Starting Current	40 mA	20 mA	20 mA	10 mA	10 mA
Frequency	50 Hz±%2
Meter Constant	1000 imp / kWh
Connection Type	Direct	Direct	Direct	Direct	CT
Meter Constant	P 54
Relative Humidity	95%
Temperature Range	-40 °C / +70 °C
LCD Screen	6 integers 3 decimal
Communication	RS485	RS485	-	RS485 / RS232	RS485 / RS232
