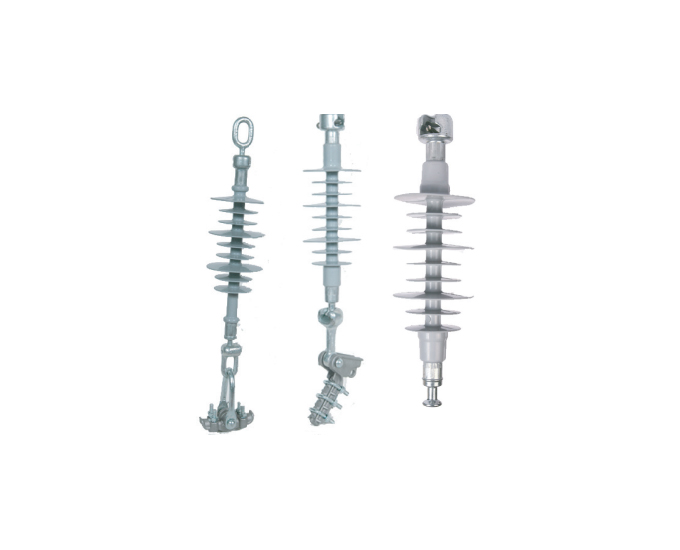

Composite Insulators

Technical Properties	Unit	36 kV 40 kN	36kV 100 kN
Total creepage distance	mm	1155	1190
Minimum power frequency withstand voltage in wet conditions	kV	70	70
Minimum lightning impulse withstand level	kVpeak	170	170
Minimum failing load (SML)	kN	40	100
Distance between metal parts	mm	326	320
Arcing distance	mm	368	367
Silicon material / rengi		LSR / Light grey
Metal end - fittings		Hot dip galvanised forged steel.
End - fitting sizes		IEC 60120 size 11 (K1)	IEC 60120 size 16/B (K2)
Applicable standards		IEC 61109, IEC 62217, IEC 60120
