FIELDS of USAGE
• Substations
• Distribution Centers
• Industrial Centers
• Wind Power Plants (WPP), Solar Power Plants (SPP)
• Compensation Facilities
• Water Pump Stations
• Generator Kiosks
ADVANTAGES
• Due to its Monoblock structure, it is suitable for relocation
• Quick and easy assembly
• Environmentally friendly in appearance and structure
• Various color options
• Resistant to climatic conditions
• Long-Lasting
STRUCTURAL PROPERTIES
CASING
• The roof of the compact center is resistant to 2500 N / m2 load.
• The housing is resistant to wind pressure of at least 34 m / sec.
• Ventilation louvers and doors withstand a mechanical shock corresponding to 20 Joules (IK10) from inside and outside.
• Protection Class: 10
• Concrete substations have proven to be safe against earthquake conditions.
Concrete and Steel Reinforcement Properties
• C35 / 45 concrete in accordance with TS EN 206-1 standard is used.
• Concrete quality tests are carried out periodically in accredited laboratories.
• Steel structures are used according to TS 708 standards.
Ventilation Blinds, Doors & Locking Systems
• Ventilation louvres and doors are manufactured from 2 mm thick electrostatic powder painted galvanized sheet material.
• The doors are designed to remain in the 120 ° open position and cannot be removed from the outside.
• All locks of the compact center are designed in a special structure that cannot be recessed and detached from the outside and can be locked with a single key.

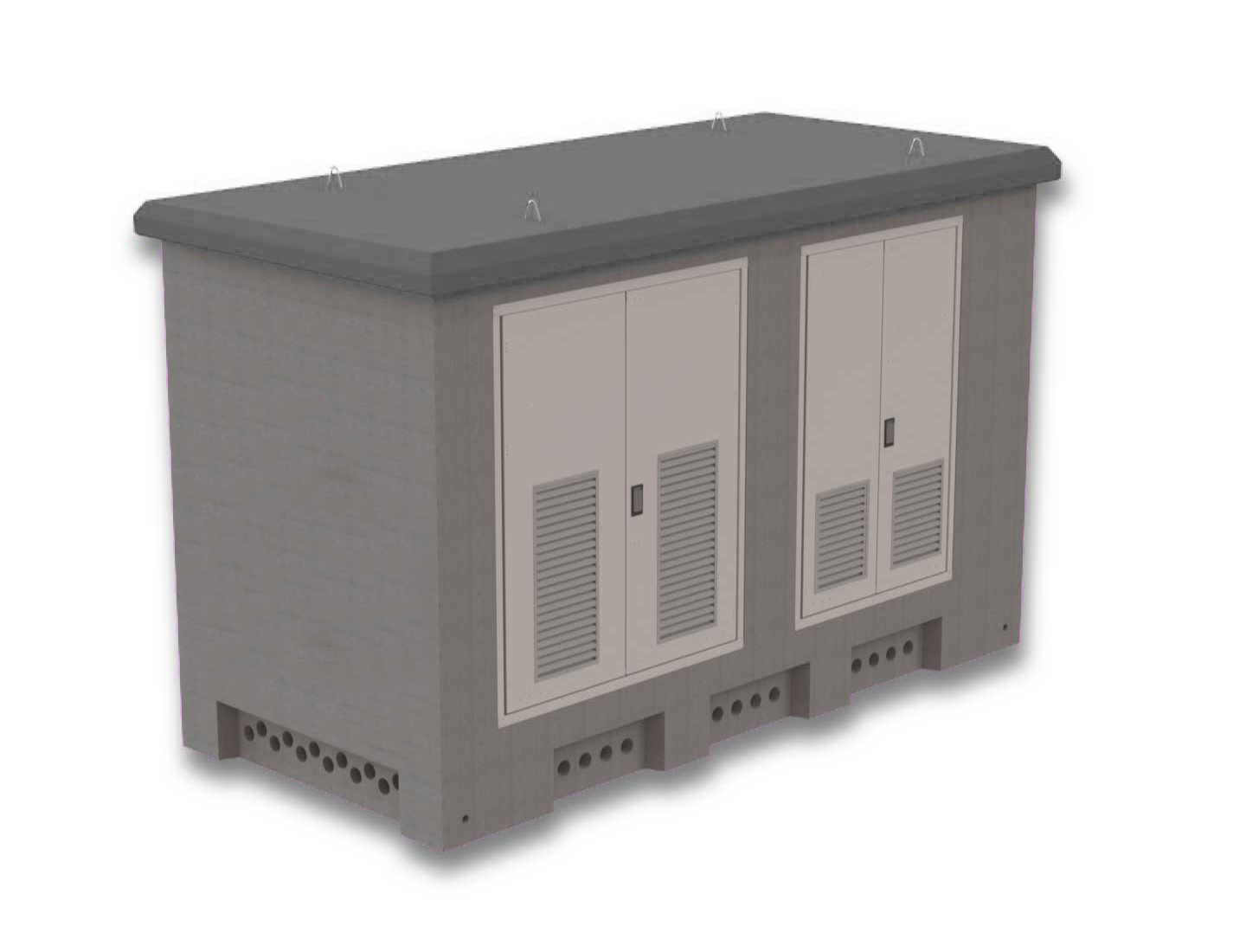

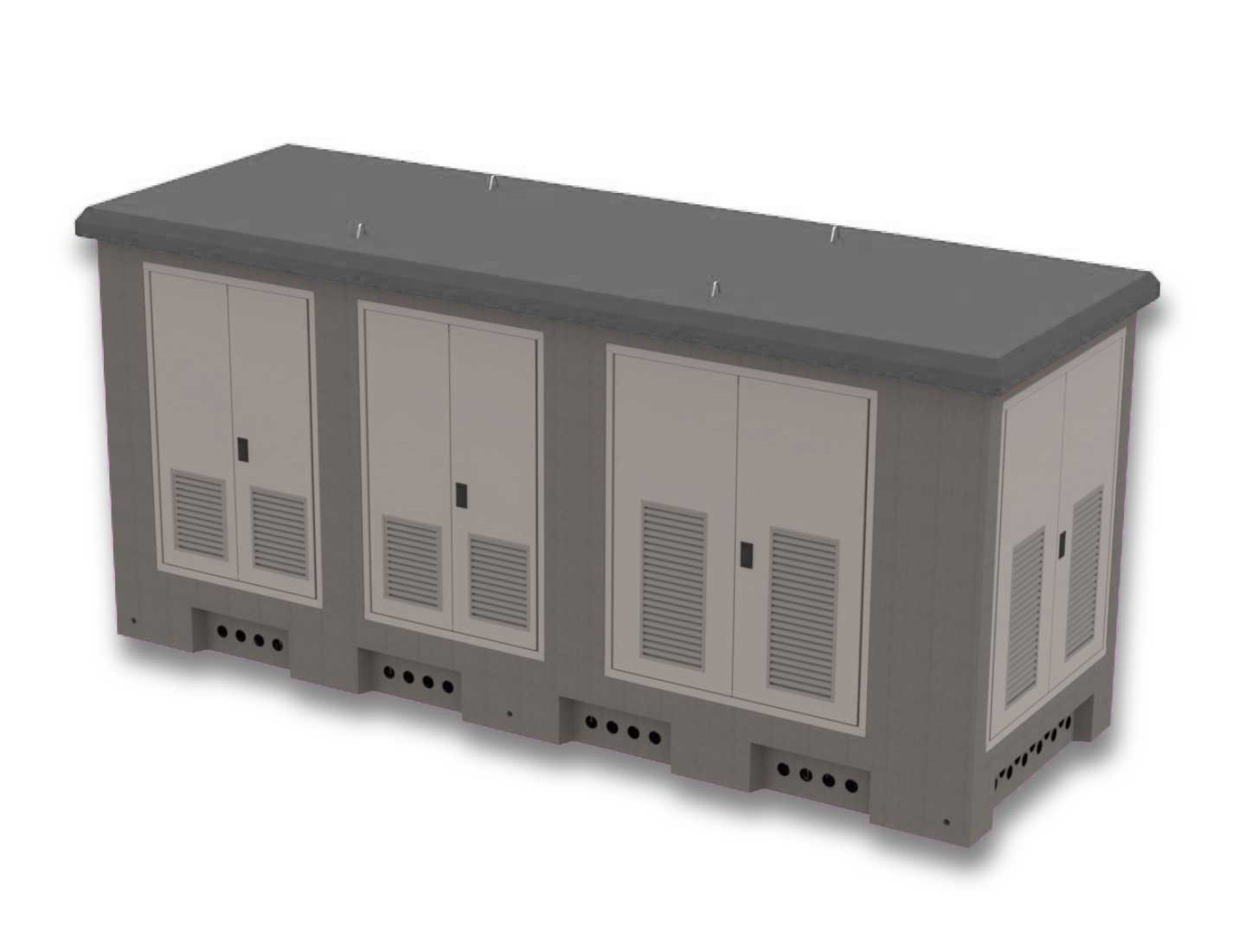

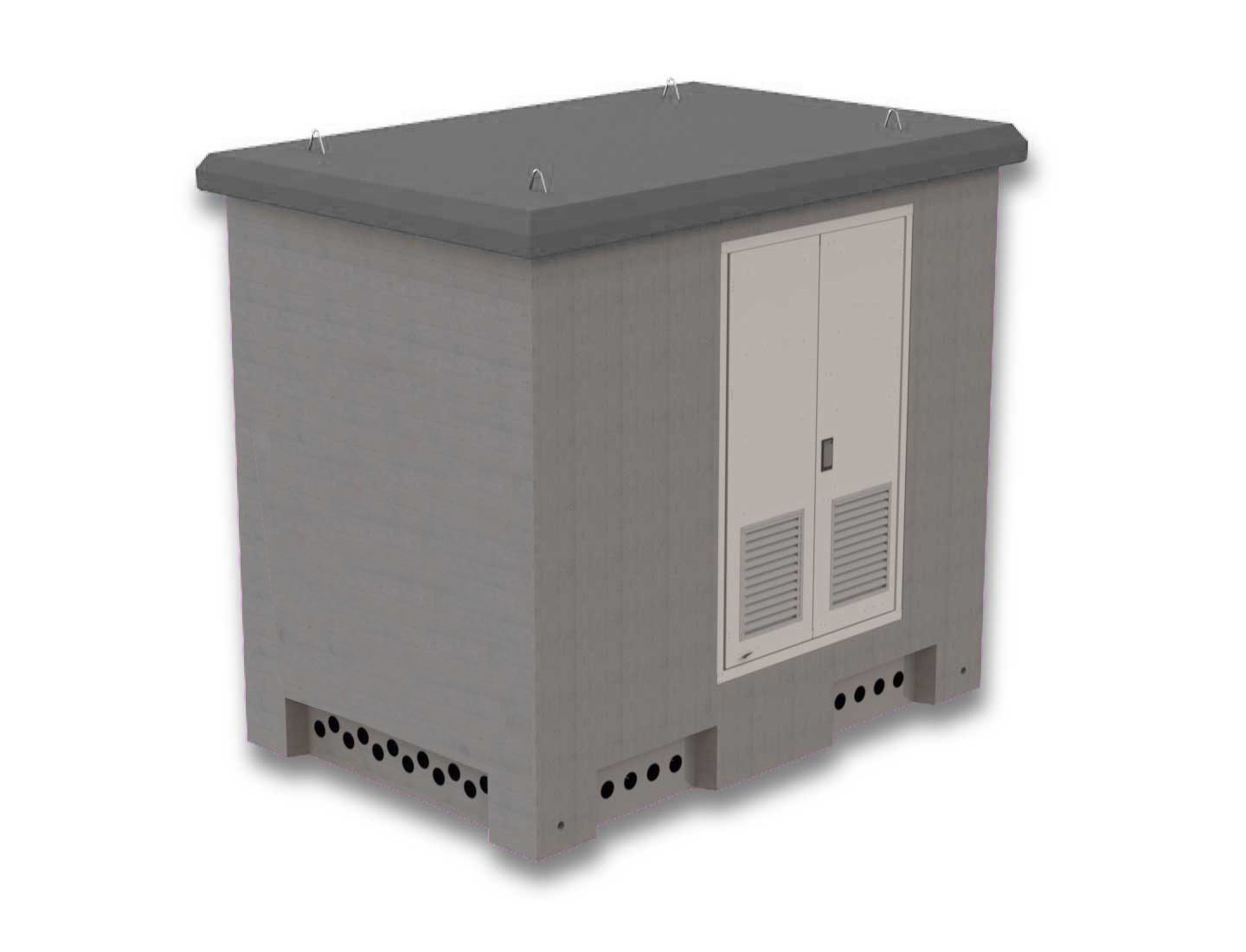

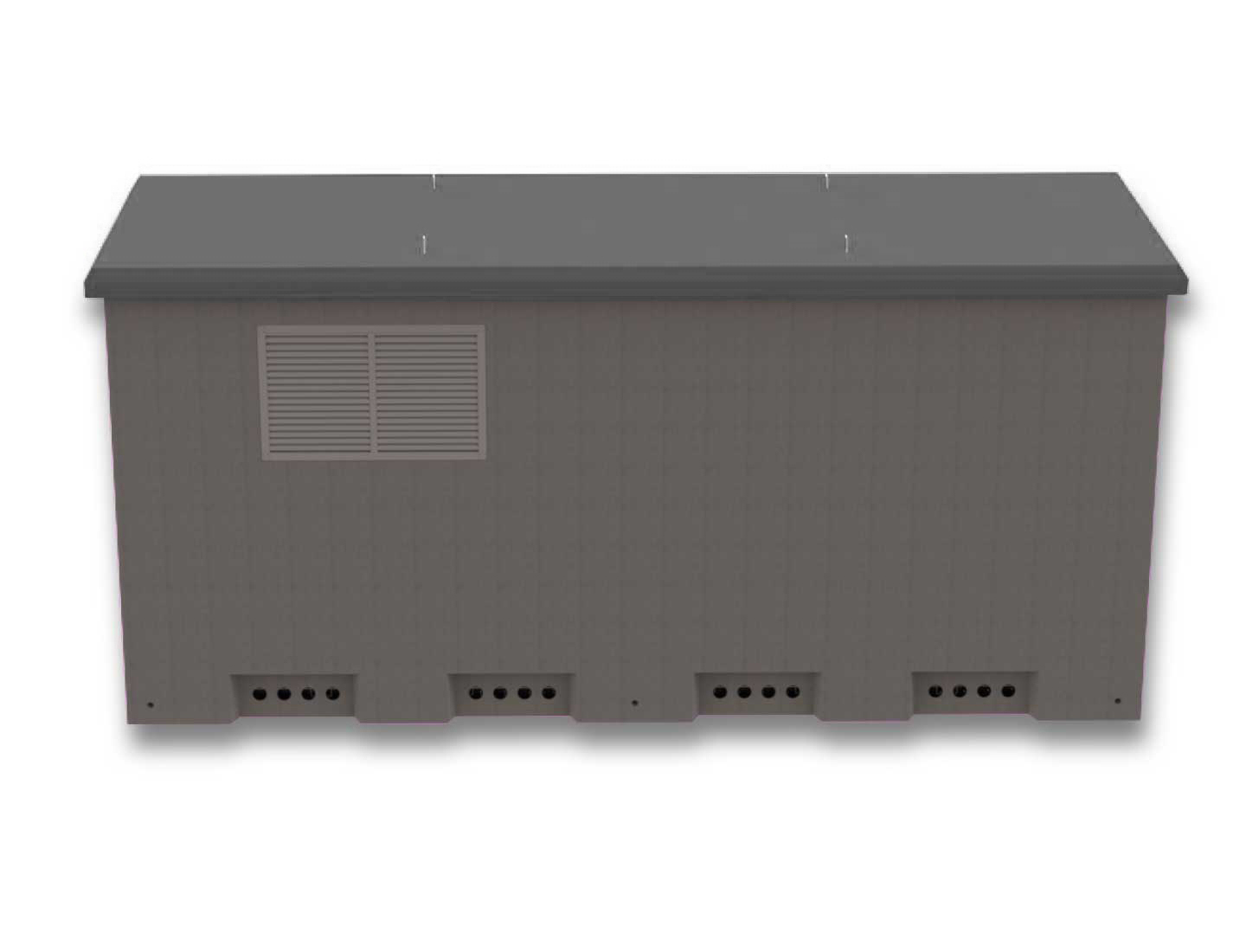

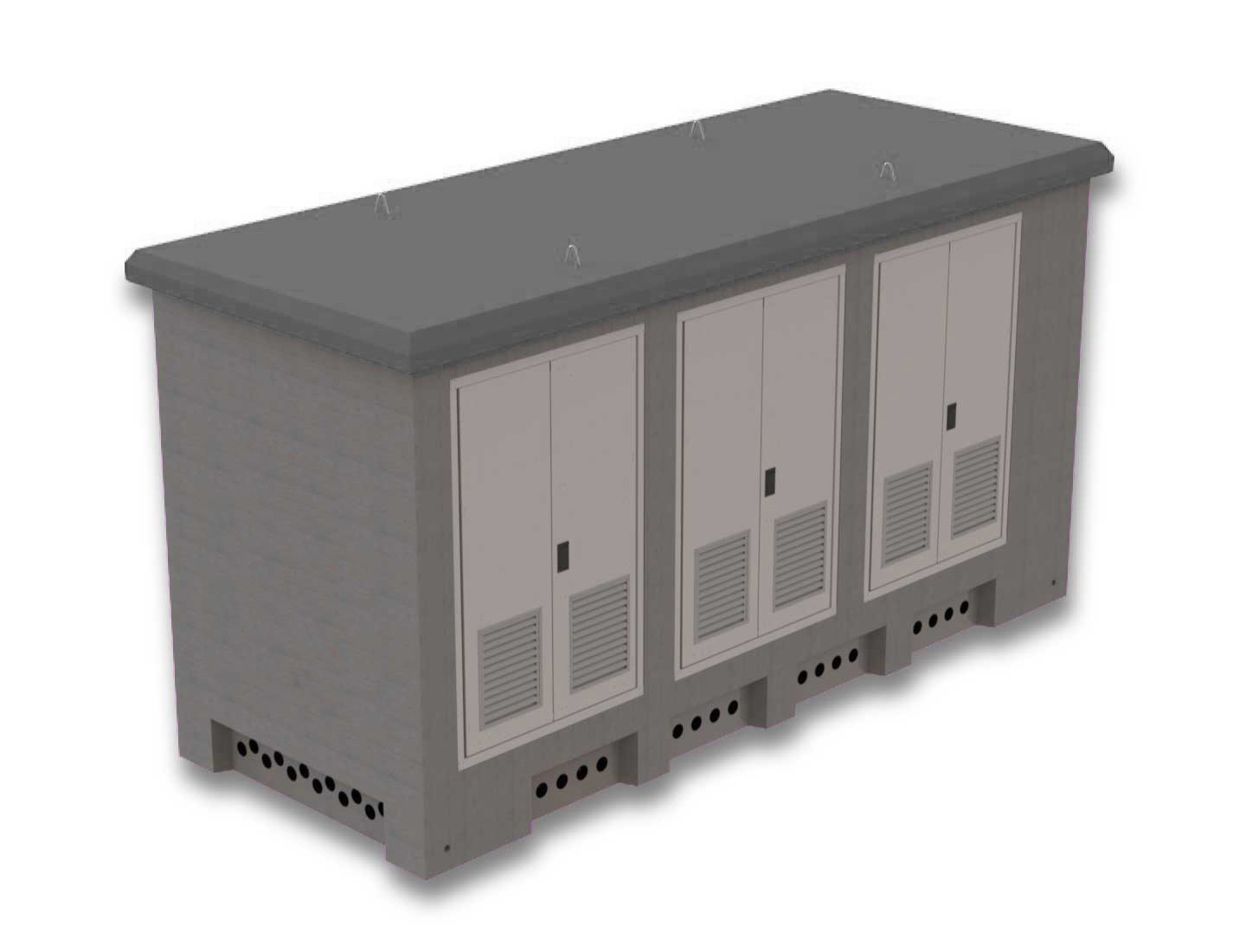

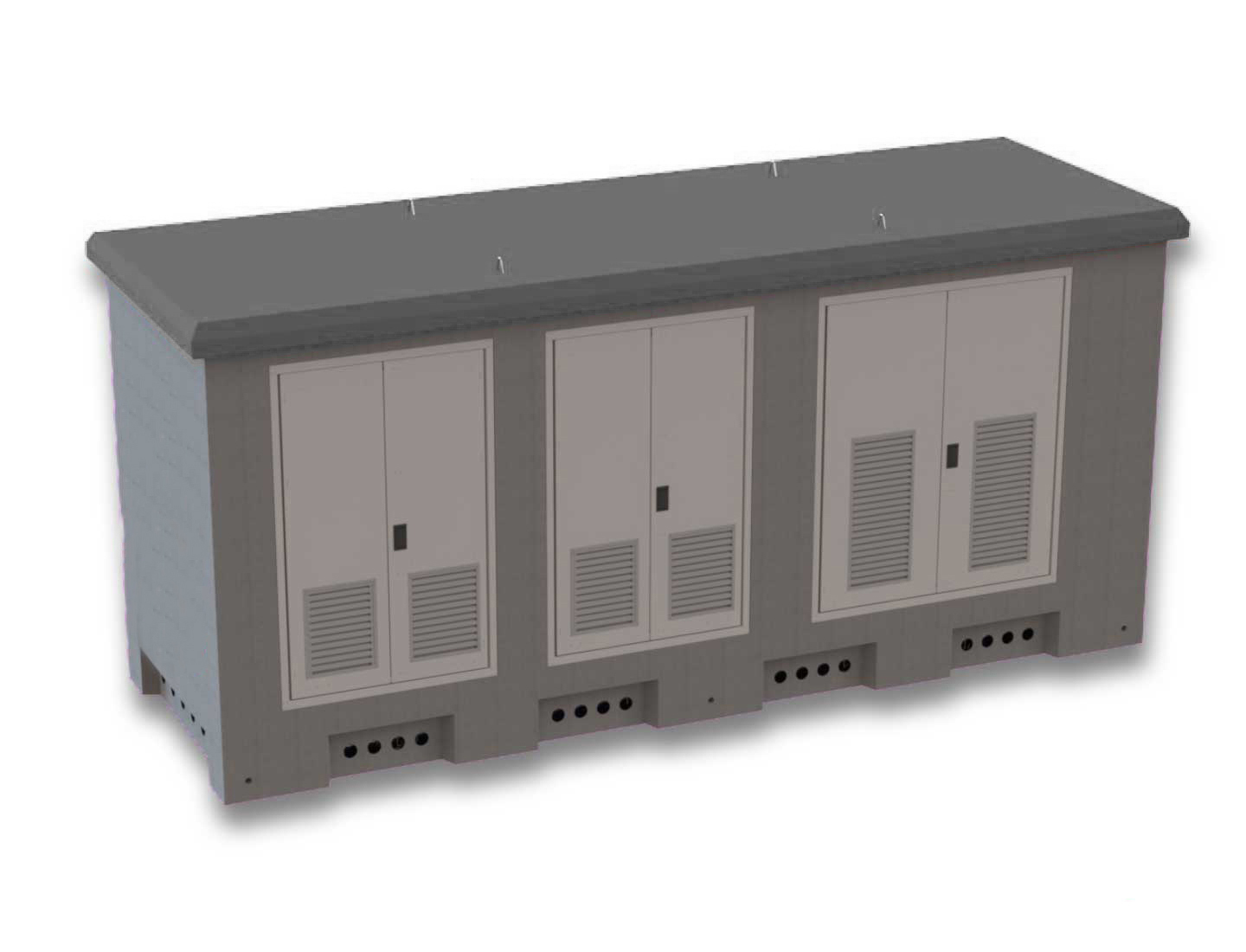

Concrete Kiosk
