Metal Clad Switchgear

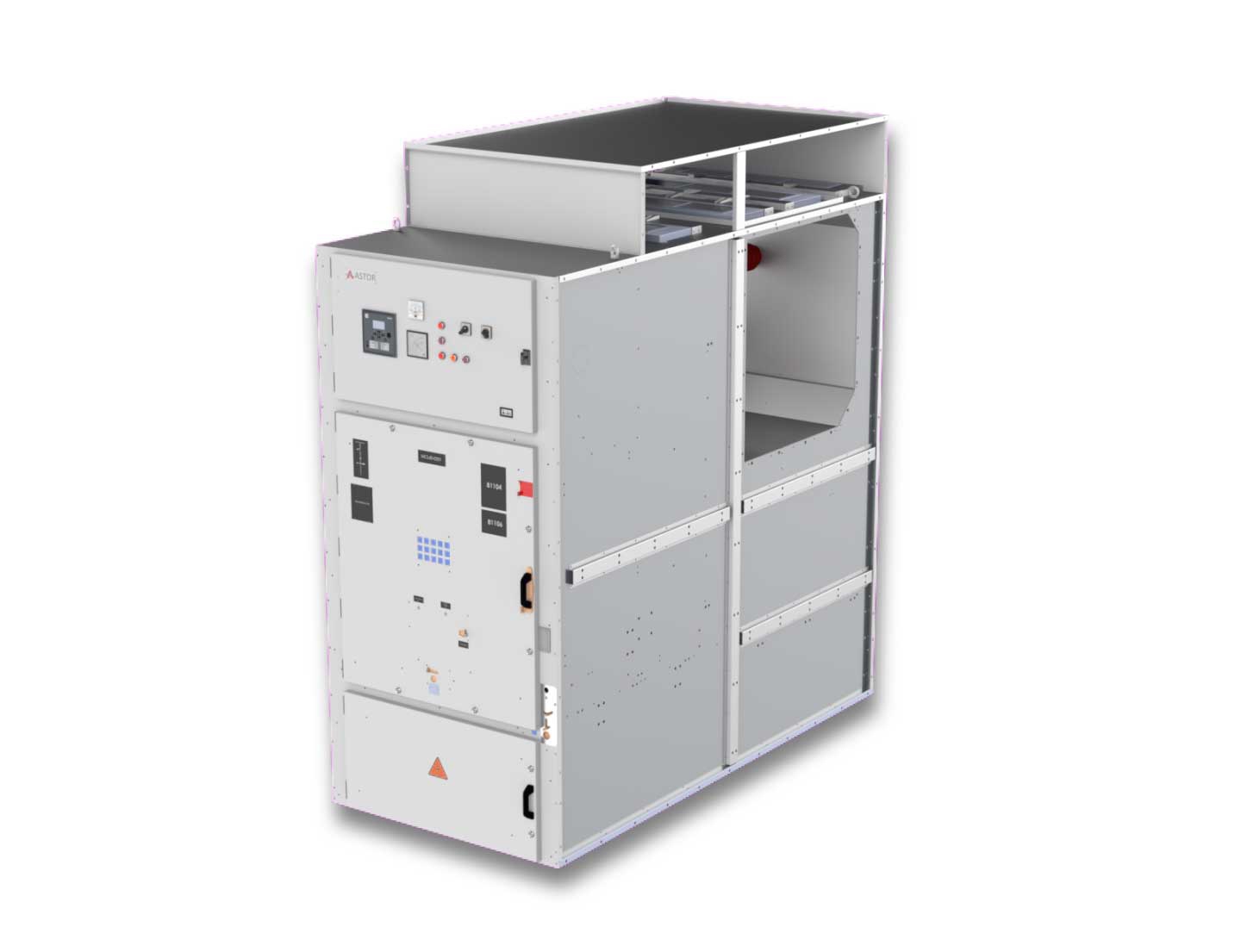

Air Insulated Metal Clad Switchgears are designed according to IEC 62271-200 standard for using up to 40.5kV. It always fulfill the needs with flexible designs which are suitable for the projects. Metal Clad Switchgears are produced to be used in places where the maximum service continuity is desired. Metal Clad Switchgear is designed for indoor applications. Generally metal clad switchgear is used to distribute electric power in a variety of demanding applications such as in power plants, utility substations, cement and petrochemical factories, in mines, airports, railway, shopping mall and suitable to provide control and protection for transformers, capacitors and motors.

METAL CLAD SWITCHGEARS GIVE YOU THE ADVANTAGES OF
• Continuity of service for your networks
• Optimized investment throughout the life of your installation
• The possibility of incorporating your medium voltage switchboard in a remote monitoring and control system.
• Resistance to high current and short circuit (31,5kA /3 second)
• It guarantees a high level of protection of people; when an accessible compartment is open, the other compartments and/or functional units may remain energised.
• Easily replaceable withdrawable type switching devices between the panels.
• Maintenance, reparation and on-site installation can be done from front or back side of the switchgear.
• Since the switchgear is highly modular type, this make simple selection of components required by any application

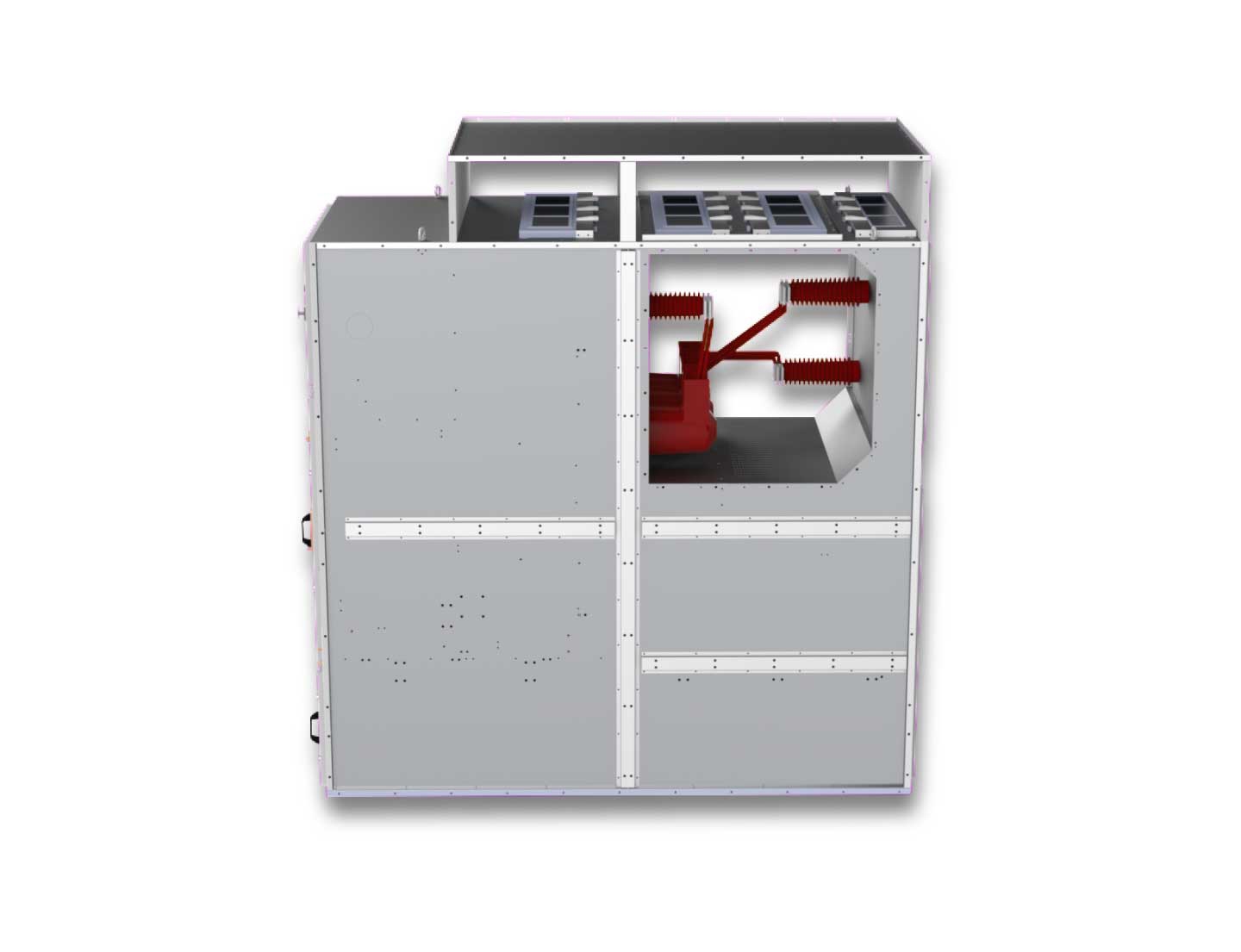

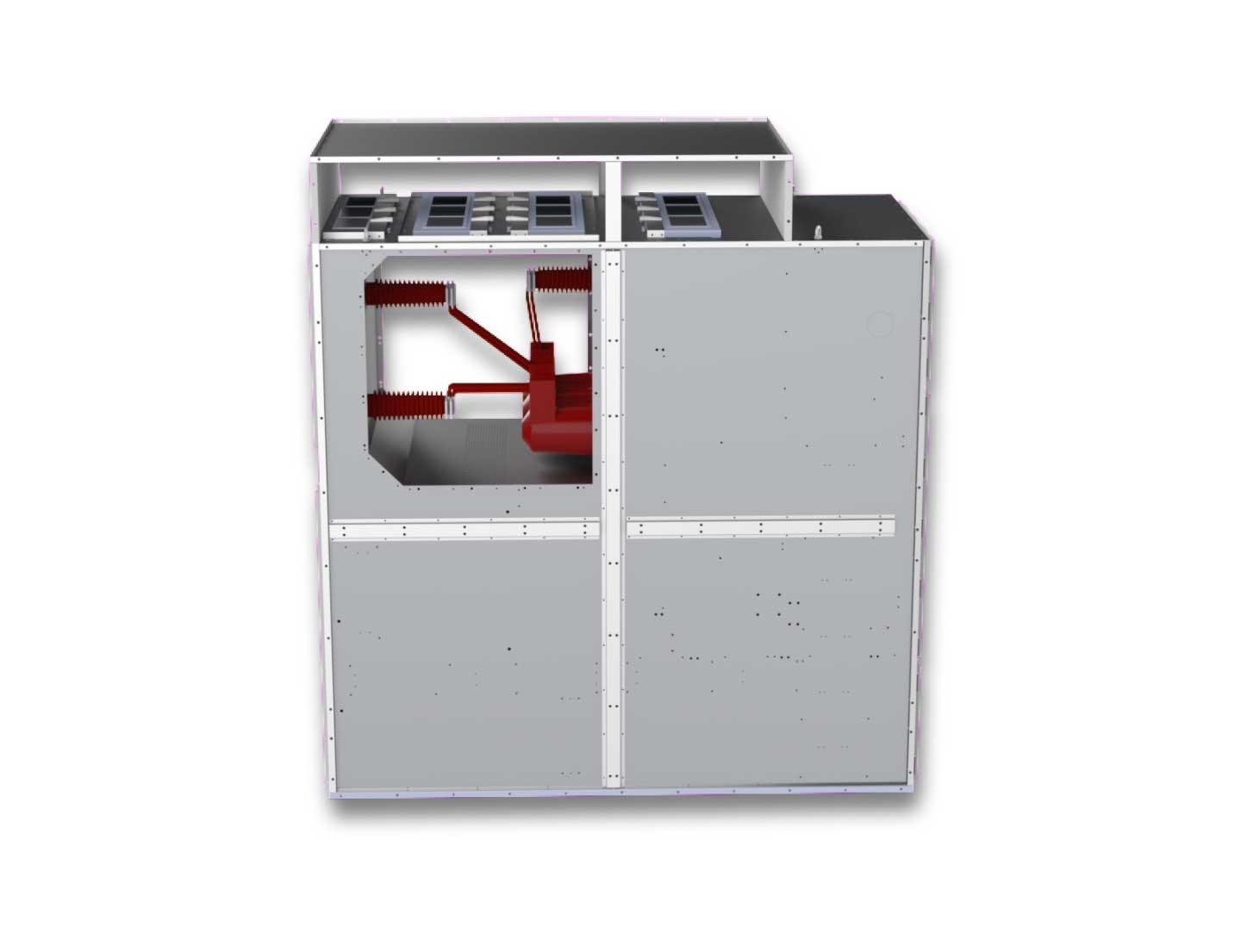

NEW METAL CLAD CELLS

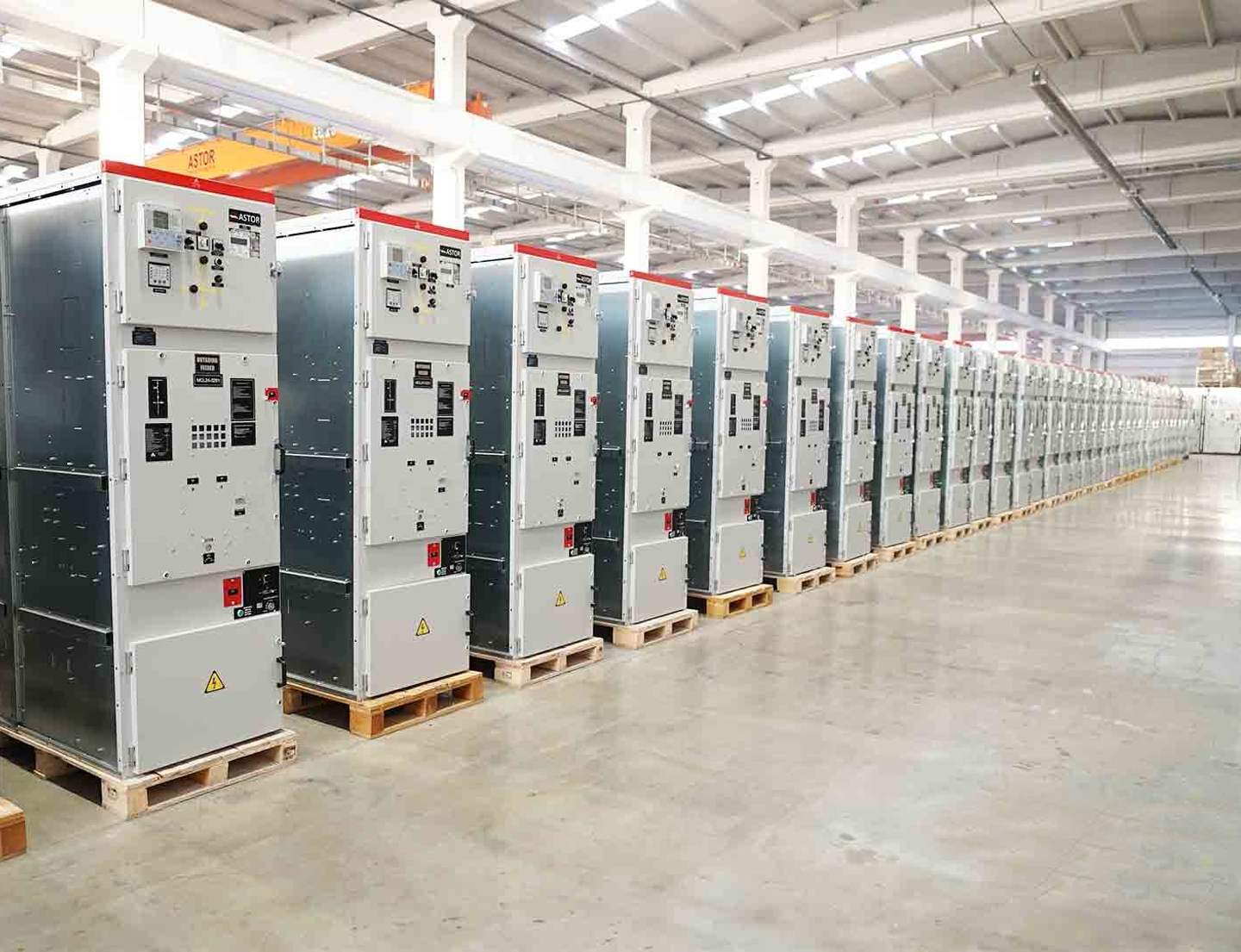

While the brand continues to offer high technology engineering and design products, we rapidly continue the mass production of air insulated Metal Clad cells, the new member of medium voltage switchgear products. Metal clad cubicles with their flexible designs, provide service continuity and maximum protection. So they open our doors to the world with 12 KV, 24 KV voltage levels, with our first compact 40.5 kV metal clad cubicles supported by TÜBİTAK and KEMA type test certificate. We continue to energize turkey and the World.

METAL CLAD SWITCHGEAR TECHNICIAL SPECIFICATIONS

Type	40	24	12
Rated Voltage	40,5 kV	24 kV	12 kV
Rated Busbar Current	1250-2500 A	1250-2500 A	1250-2500 A
Rated Lighting Imp. Withstand Voltage	185 kV	125 Kv	75 kV
Rated Short Time Withstand Current	95 kV	50 kV	28 kV
Rated Power Frequency Withstand Voltage	31,5 kA/1sn	31,5 kA/1sn	31,5 kA/1sn
Rated Peak Withstand Current	62,5-80 kA	62,5-80 kA	62,5-80 kA
Arc Test Current	31,5 kA/1sn	31,5 kA/1sn	31,5 kA/1sn
IP Protection of Enclosure	IP4X	IP4X	IP4X
Partitioning Class	PM	PM	PM
