R-L-C Load Banks

TECHNICAL FEATURES
DC or 50 - 60 Hz
5000 kW resistive ( up to 15000 V )
5000 kVAr inductive ( up to 3000 V )
5000 kVAr capacitive ( up to 36000 V )
Each set up to 5000 kVA

Power Analyzer Measurements
V1 - V2- V3- N - A1 - A2 - A3 - cosΦ - Hz - kW - kVAr - kWh

Ordering Datas
• Applied Voltage and frequency
• Mobile or stable
• Load step resolution
• Indoor or outdoor service
• Resistive, Inductive, Capacitive
• Capacity (kW, kVA, kVAr)Blower and control voltage
• Internal and/or external control power
• Meters (Voltmeter,Ammeter,KWmeter,KVAmeter,cosΦ,frequency meter)
• Optional computer interface RS 232 / RS 485 (wireless computer interface on demand)

2500 kW Resistive Load Bank

20 kW Resistive +20 kWar Inductive
20 KVar + Capacitive Load Bank

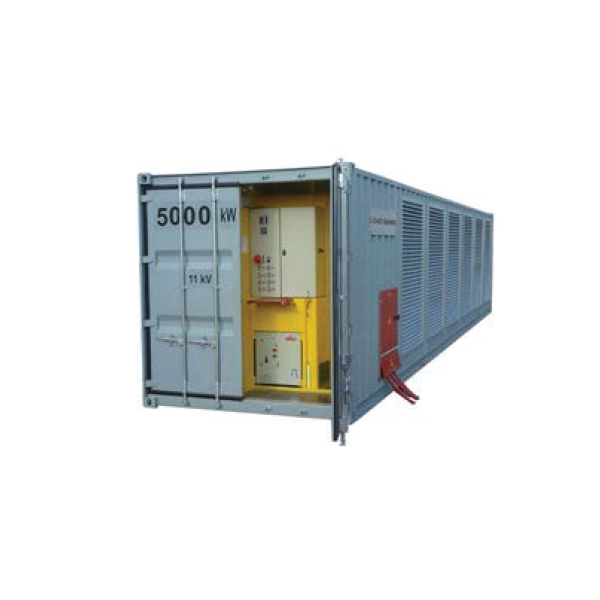

5000 kW 11 kW Load Bank

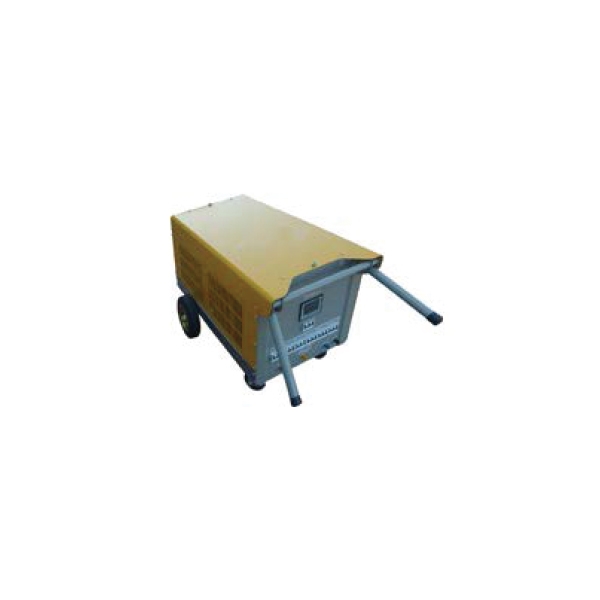

50 kW 400 V Mobile Load Bank

3 x 380 V 320 kW Load Bank
