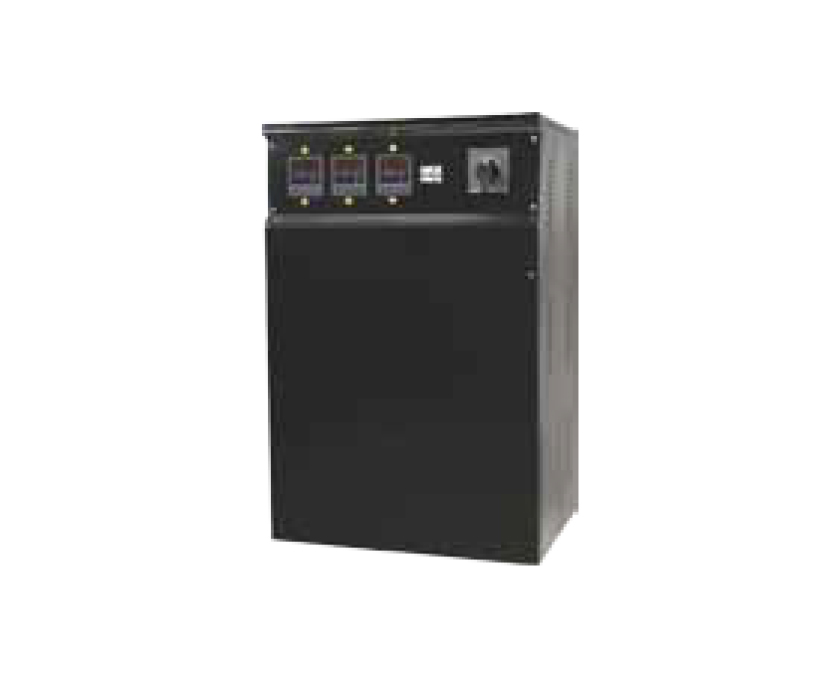

Servo Voltage Stabilizers

MODEL	Microprocessor Controlled SERVO-REG
Phase	1 Phase	3 Phase
Power	1 ~ 50 kVA	3 ~ 2000 kVA
INPUT
Regulation Voltage Range	165 - 255 VAC	285 - 440 VAC
Operating Voltage Range	130 - 270 VAC	225 - 465 VAC
Frequency	45-65 Hz
OUTPUT
Nominal Voltage	220 VAC RMS	380 VAC RMS
Voltage Tolerance	± 1% ( Selectable Between 1-8 % )
Frequency Range	45-65 Hz
Regulation Speed	70 - 200 V/s
THDv	0%
Overload Operation	1 second at 150 % load 7 1 milisecond at 200 % load
GENERAL
Technology	Microprocessor Controlled, Full Automatic Servo
Control	RISC Microprocessor, H-Bridge MOSFET PWM Motor Drive Technics
Independent Phase Regulation	Standard in 3 Phase Models
Efficiency	98%
Cooling	Temperature Controlled Cooling Syst
Protection	Output Short Circuit, Overload, Output High / Low Voltage, Over Temperature, Motor Fault, Ground-Neutral ( Optional ) Protection
Mechanic By-Pass	Manual Mains7Regulator Breaker
CONTROL PANEL
Display	2x16 Character LCD Display, Speciaş LCD for each phase ( Optional )
Alert / Event Memory	Mimic Diagram, Fault Waming LEDs /Real Time 1024 pcs Event / alert Memory
Monitorable Datas	True RMS Input / Output Voltage, Load Percentage, Frequency Measurement
COMMUNICATİON
Dry Contacts ( Optional )	Regulator Normal Operation ( NO,C,NC ):High/Low Output Voltage Waming ( NO,C,NC )
Remote Monitoring ( Optional )	over Netwok / LAN ( Optional )
ENVIRONMENT
Operating Temperature Range	0 °C ~ 40 °C
Relative Humidity	< 95% ( Non-Condensing )
Noise	<45 dB
Altitute	≤ 3000 m
Protection Class	IP20
STANDARDS
