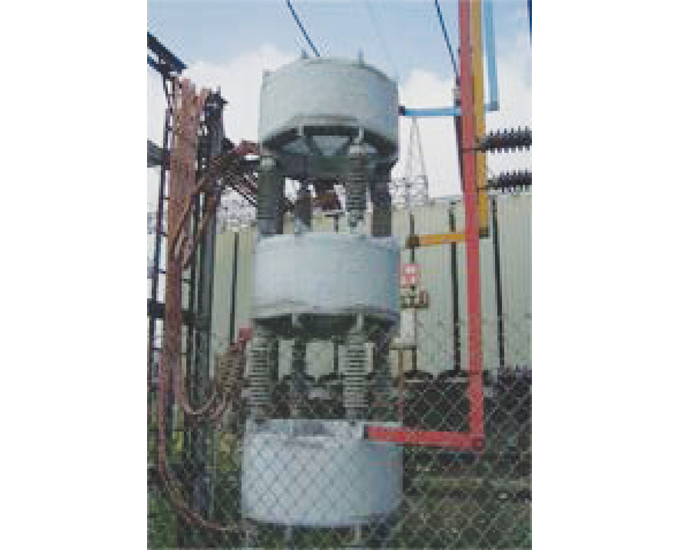

Shunt Reactors

Shunt reactors are used in order to compensate capacitive reactive power generated by long and lightly transmission lines, thus allowing the flow of more active power through the system. Shunt reactors are normally connected to the tertiary winding of the main transformer. In high power and high voltage systems, shunt reactors should be used with RC filters because in such systems switching transient voltages are extremely high and that's why switching devices may be damaged.

• Air core and iron core
• Dry type
• Outdoor and indoor
• Single phase or three phase
• Enclosures are available on demand
• Elevated support stands are available
• Aluminum or copper winding
• RAL 7032 or other colors
• - 40 ºC / + 55 ºC ambient temperature range
• F class (155 ºC) or customer specific design
• Taps are available
• Fiberglass resin spacers are used in order to provide ease of cooling
• AN (air-natural) cooling method
• Side by side, delta or vertical arrangement depending on space availability for air core reactors
