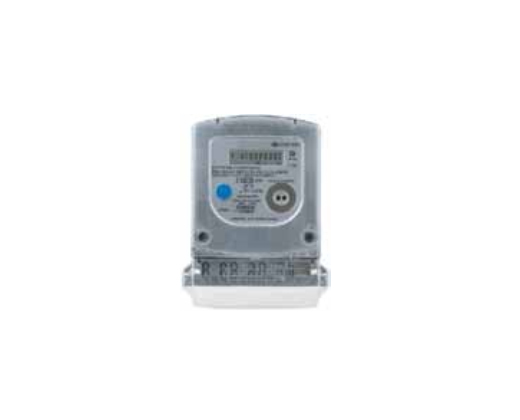

Single Phase Meters

TYPE	L1	L10	L11	L12
Connection Type	220 V
Accuracy	110V-300V
Reference Voltage	1 Phase and 2 wires
Operating Voltage	Active Class: B
Reference Current	10 A	5 A	5 A	5 A
Maximum Current	85 A	60 A	60 A	60 A
Minimum Current	0,5 A	0,25 A	0,25 A	0,25 A
Starting Current	40 mA	20 mA	20 mA	20 mA
Frequency	50 Hz±%2
Meter Constant	1000 imp / kWh (Active)
Connection Type	IP 54
Protection Degree	0,95
Relative Humidity	-40 °C / +70 °C
Temperature Range	Direct
LCD Screen	6 integers 3 decimal
Communication	-	-	-	RS485/RS232
