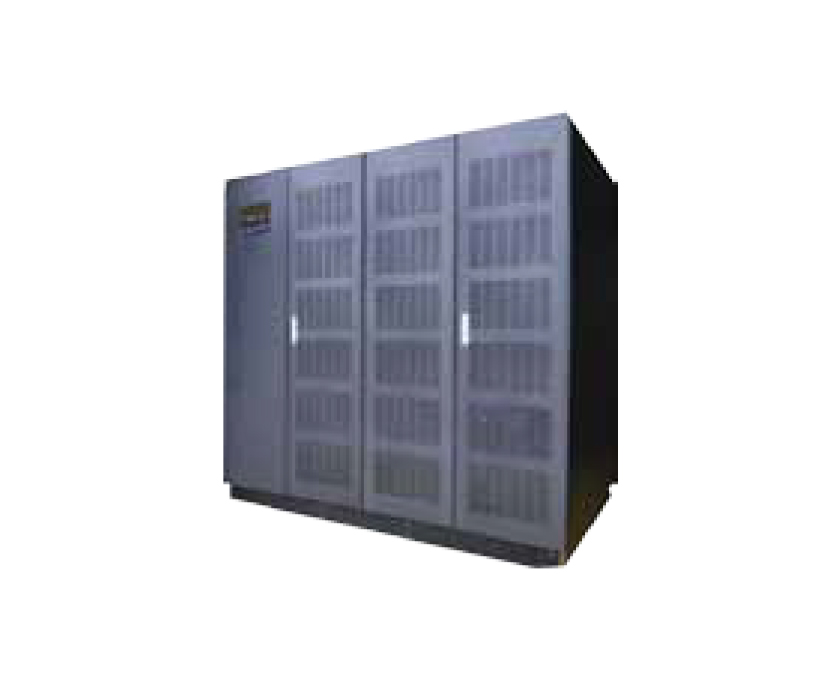

Static Voltage Stabilizers

Model	SVR
Phase	1 Phase	Phase
Power	3 kVA ~ 45 kVA	0 kVA ~ 3000 kVA
INPUT
Operating Voltage Range	130 - 270 VAC	210 - 475 VAC
Regualation Voltage Range	165 - 255 VAC	285 - 440 VAC
Frequency	50 Hz ± 5%
Input Protection	Over Current Thermal Fuse, Surge Protection
OUTPUT
Voltage	220 VAC RMS ± 1% - 3%	380 VAC RMS ± 1% - 3%
Overload Operation	10 seconds at 200 % load
Regulation Speed Response Time	5000 V / s
Output Prorection	~ 20 ms. ( 165 VAC - 255 VAC )
GENERAL
Technology	RISC Microprocessor Controlled, Full Automatic, Electronics Design with Static emiconductors, No Moving Parts Inside
Efficiency	>98% ( at Full Load )
Mechanic By-Pass	Utility - Regulator Selector PAKO Breaker
CONTROL PANEL
Display	4 x 20 Charracter LCD Display
Waming Messages	Mains Low / Mains High, Output Low / Output High, Load >100 % and Over Temperature
Monitorable Datas	Output Voltage, Input Voltage Load Percentage
Output High Voltage Limit	Selectable between 230 VAC - 250 VAC ( via LCD )
Output Low Voltage Limit	Selectable between 180 VAC - 210 VAC ( via LCD )
COMMUNICATION
Remote Monitoring	Monitoring of Operation over Network7LAN ( Optional )
ENVIRONMENT
Operating Temperature Range	0 °C~ 40 °C
Relative Humidity	< 90 % , DIN ( 40040 )
Altitute	≤ 3000 m
Noise	< 50 dB ( from 1 meter distance )
Protection Level / Colour	IP20 / RAL 7035 / 7032 ( Optional )
STANDARDS / CERTIFICATES
