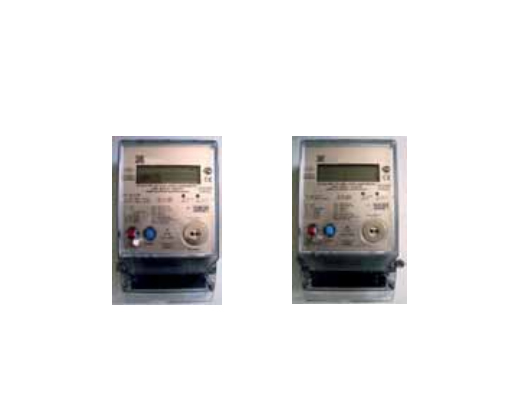

Triphaze Active - Reactive Meters

Type	AEL.TF.19	AEL.TF.10
Name	3 phase, 4 wire, 4 tariff, demand measuring, optic port communication, current and voltage transformer connected, active-reactivecapacitive electronic meter	3 phase, 4 wire, 4 tariff, demand measuring, optic port communication, direct connection, active eactive - capacitive electronic meter
Casing Type	Mountable to the Wall
Precision Class	Active Class 1 / Reactive Class 2
Relevant Standard	TS EN 62052-11 - TS EN 62053-21 - TS EN 62053-23
Nominal Current	X…./5(10) A	3x10(100) A
Nominal Voltage	3x220/380 V 3x57,7/100 V	3x220/380 V
Digital Display	For Energy Amount 8 Digits For Demand Value 6 Digits - Power Factor 4 Digits
Operation Temp. Range	-40 ºC, +85 ºC
Protection Class	IP54
Rate & Counter Invariables of Pulse Displaying LED	10.000 imp/kWh	1000 imp/kWh
Data Collection Capacity of Counter Memory	1 Year
